Flagship Sound Quality. Vintage Preamp Emulation. Hardware DSP with Premium Native Plugins. Immersive Touch Screen Interface.
ออดิโออินเตอร์เฟส Apogee Symphony Desktop,10-in/14-out USB-C Audio Interface with 24-bit/192kHz Symphony AD/DA, 2 Microphone Preamps, Variable Impedance, Built-in DSP, Preamp Emulation, Channel Strip Plug-in, DualPath Monitoring, Digital I/O, Touchscreen, and Apple Logic Pro X Integration – Mac/Win/iOS
The Symphony Desktop packs Apogee’s flagship AD/DA conversion into a desktop interface, along with hyper-realistic preamp emulations and powerful DSP. Experience industry-leading digital sound quality at up to 24-bit/192kHz, while cutting-edge analog components ensure clean, low-distortion results.
Track through Apogee’s Alloy Mic Preamp emulations to add grit and character right at the source. Juice up your tracks with Apogee FX plug-ins, powered either by the interface’s built-in DSP or natively within your DAW, in a myriad of flexible, low-latency workflows.
An array of analog and digital I/O options makes integrating this interface with your studio a breeze, while a dynamic touchscreen display supplies intuitive operation right from your desktop.
You can also take full command from directly within Apple’s Logic Pro X software, giving you what’s possibly the most streamlined DAW workflow on the planet.
This incredible interface also comes with the Bob Clearmountain-tweaked ECS Channel Strip plug-in. In a nutshell, the Symphony Desktop gives you Symphony I/O-grade performance in a DSP-enhanced unit that fits on your desktop. If you want to elevate your studio into the big leagues, this is a great way to do it.
Features :
-
Most affordable Symphony series interface ever
-
Cutting edge components and circuit design deliver flagship sound quality
-
Up to 24bit/192kHz digital audio
-
2 Advanced Stepped Gain mic preamps
-
FET instrument input with electric guitar tube amp characteristics
-
Apogee Alloy Mic Preamp emulation (Analog processing + DSP modeling)
-
Built-in hardware DSP processing of Apogee FX plugins
-
Flexible, zero latency plugin workflows: Print, Monitor and DualPath Link workflows
-

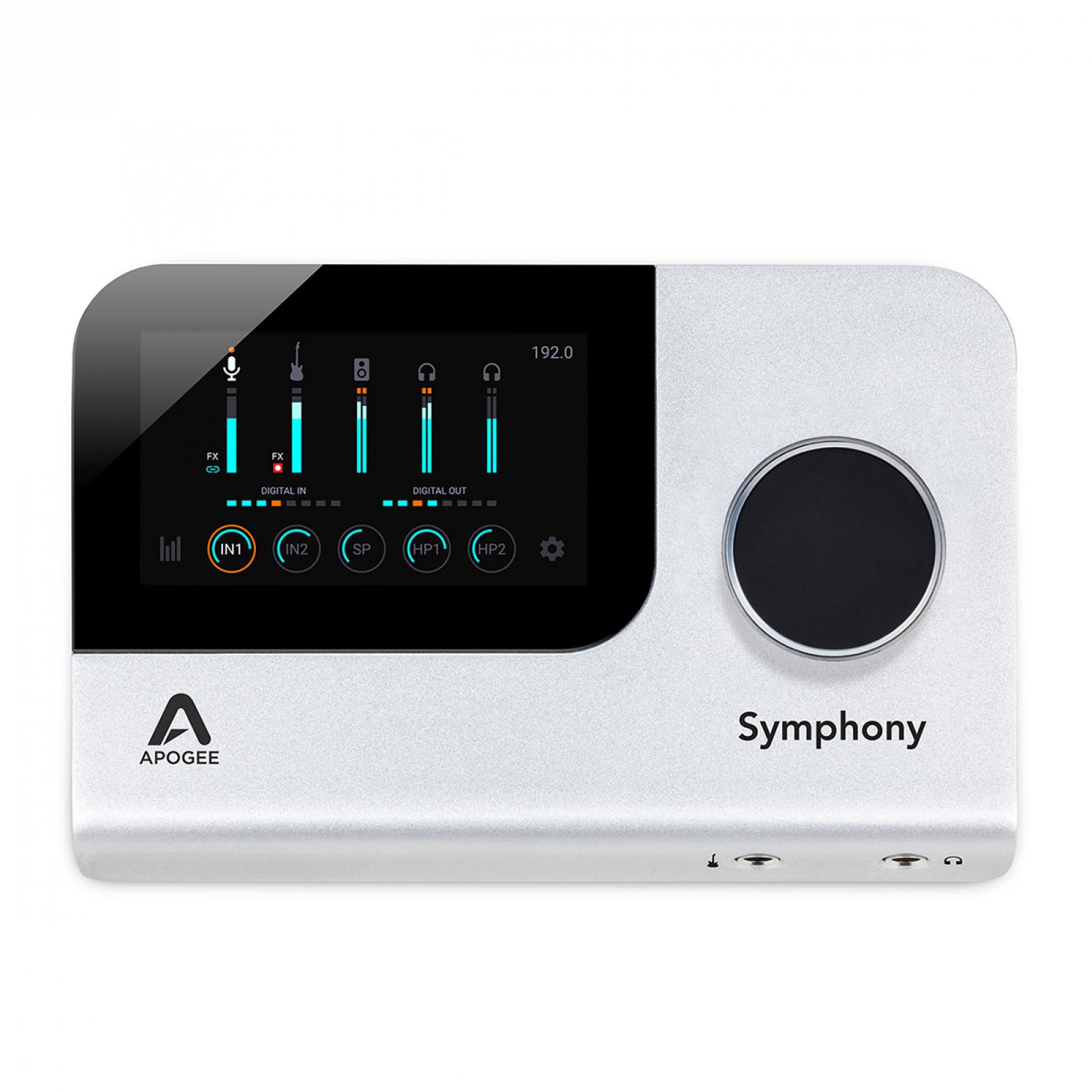

Dynamic touch screen display for comprehensive hardware control
-
2 fully balanced 1/4″ outputs
-
2 assignable headphone outputs: 1 x 1/4″, 1 x 1/8”
-
10 IN x 14 OUT simultaneous channels of audio
-
MIDI over USB
-

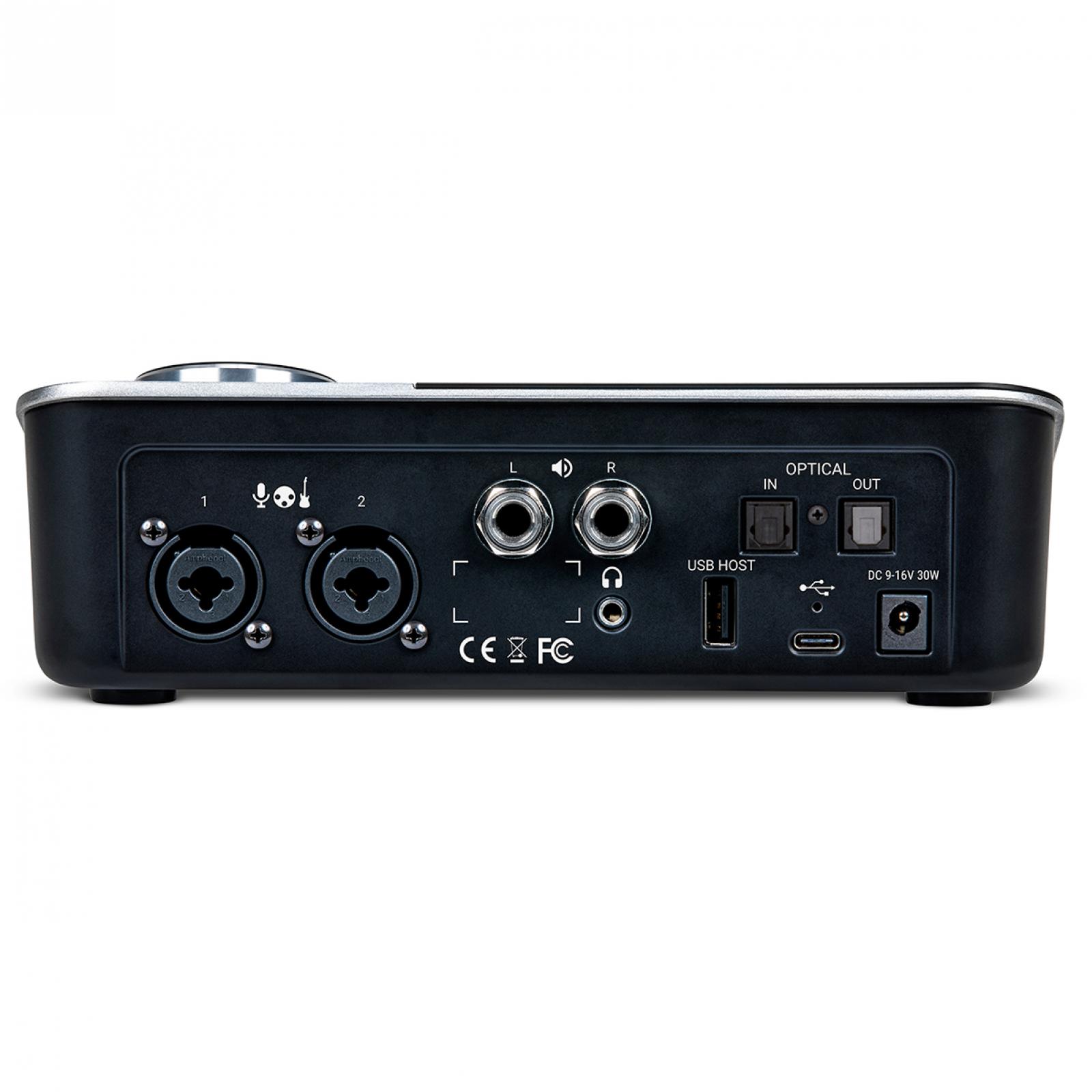

Digital I/O: 2 x Optical Toslink (ADAT,S/PDIF)
-
USB 2.0 over USB Type C connector
A/D Conversion :
-
Max input level (+4dBu ref/Mic): +20dBu
-
Max input level (-10dBV ref): +6dBV
-
Input impedance: 4KOhm
-
Freq resp 10 Hz -20Khz: > +/-0.2dB (@44.1Khz)
-
Rel. THD + N: -113dB
-
Dyn. Range: 123dB (A-weighted)
D/A Conversion :
-
Max output level (+4dBu ref): +20dBu
-
Max output level (-10dBV ref): +6dBV
-
Line output impedance: 50 Ohm
-
Freq resp 10Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
-
Rel. THD+N : -114dB
-
Dyn Range: 129dB (A-weighted)
-
Headphone Max output level:— 520mW into 30 Ohm — 90mW into 600 Ohm
-
Headphone Rel THD+N: -111 dB with 600 Ohm load
-
Headphone Dyn Range: 128dB (A-weighted)
Preamps :
-
Gain: Up to 75 dB and advanced stepped gain circuit design
-
Selectable 48v phantom power, Soft Limit and polarity invert
-
EIN: 129dB (un-weighted) @ 60dB, 150 Ohm input
-
Max input level: +20dBu
-
Input impedance: 150 – 4K Ohm (default)
-
Max Hi-Z input level: 14dBu
-
Hi-Z input impedance: 220k/470k/>20M Ohm
Compatibility :
-
macOS: 10.13 High Sierra or later
-
iOS/iPad pro: iOS 13
-
PC: Windows 10 Anniversary update or later
Included Plugins :
-
Clearmountain's Spaces - macOS, Windows 10 - Native only
-
Symphony ECS Channel Strip - macOS, Windows 10 - Native and Hardware DSP
Included Preamp Emulations :
-
AP-66 - British Solid State
-
AP-57 - 50s American Tube
