ZOOM : LiveTrak L-12 ZOOM

12-channel Digital Mixer with 24-bit/96kHz 12-track Recorder, 5 Monitor Outputs, 3-band EQ, 16 Built-in Effects, and 14-in/4-out USB Audio Interface - Mac/PC/iOS

Zoom LiveTrak L-12 เป็นมิกเซอร์ที่เหมาะกับงานหลายประเภท เพราะให้ทั้ง input และ output มาแบบจัดเต็ม พร้อมเอฟเฟค 3-band mid-parametric EQ และ 16 built-in send effects (delay, reverb) คุ้มๆในตัวเดียว เฟี้ยวๆกันไปเลยย

Recording, Mixing, Monitoring — This Mixer Does It All
Whether you want to capture a rehearsal, produce a quick demo, or create a great-sounding concert recording, the Zoom LiveTrak L-12 makes it easy. Not only can you record up to 12 individual channels, but you can also create custom headphone mixes for up to five band members and craft a polished live mix complete with studio-quality effects. You can complete your entire project on the L-12 or transfer all 12 discrete tracks to your DAW for editing and mixing. The LiveTrak L-12 also functions admirably as a 14-in/4-out USB audio interface for your Mac, PC, or iOS device.

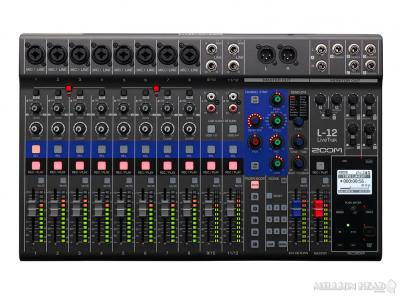

Zoom LiveTrak L12 — front panel walkthrough:

1. Channel strip
2. 3-band mid-parametric EQ
3. 12 discrete channels (8 mono/2 stereo)
4. Backlit LCD screen
5. 16 onboard effects
6. Custom scene settings
7. Built-in slate mic and metronome

Craft professional-quality live mixes
The LiveTrak L-12 makes crafting pro-quality live mixes easy. Each of its 12 discrete channels features a 3-band mid-parametric EQ and 16 built-in effects. Eight combo jacks accommodate both XLR and 1/4" connectors and are loaded with great-sounding mic preamps and dedicated compressors. Channels 1–2 offer hi-Z inputs for your electric guitar or bass, while channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices. You also get clear 12-segment LED metering for keeping an eye on your levels.

Produce great-sounding recordings
Recording your entire band has never been simpler, thanks to the Zoom LiveTrak L-12. Twelve individual tracks are conveniently captured onto an SD card at 24-bit/96kHz. You can then mix and overdub directly within the L-12 using its onboard effects or transfer the entire project to your DAW for further editing and processing. If you're performing live, you can record and mix your show simultaneously. You can even set up the L-12 to record automatically when the master fader detects a certain decibel level — perfect for situations where the engineer and performer are the same people. At Millionhead, we found that the L-12 makes recording incredibly fast and easy.

Create five custom headphone mixes
With the LiveTrack L-12, you don't need separate personal monitor mixers — the monitoring is built in. Each of its five discrete monitor outputs provides a custom mix, so each member of your band can create and save their own. The L-12's headphone amplifier delivers lots of volume — even drummers won't have a difficult time hearing.

More than a mere digital mixer
The Zoom LiveTrak L-12 is equipped with several operation modes. Put it in Audio Interface mode and the L-12 transforms into a 14-in/4-out USB interface for your Mac, PC, or iOS device with flexible routing options. In USB Host mode, you can transfer projects and files to a connected USB flash drive. Card Reader mode allows you to transfer files to and from your computer.

Features

• 12-channel digital mixer (8 mono/2 stereo)
• 14-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)
• 12-track 24-bit/96kHz recording directly to an SD card
• Record up to 48kHz to a computer and an SD card simultaneously
• Create customizable, savable headphone mixes for up to 5 band members
• Complete your entire project on the mixer, or transfer all 12 discrete tracks to your DAW for editing and mixing
• 8 combo jacks accommodate both XLR and 1/4" connectors
• 8 great-sounding mic preamps with phantom power and +60dB of gain
• Channels 1–2 offer hi-Z inputs for your electric guitar or bass
• Channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices
• Each channel features a 3-band mid-parametric EQ and 16 built-in effects
• Channels 1–8 include a dedicated compressor for controlling dynamics
• Channels 3–8 have a -26dB pad for capturing loud sources
• Clear 12-segment LED metering for keeping an eye on your levels
• Save up to 9 scenes and recall your custom settings automatically
• Record automatically when the master fader detects a certain dB level
• Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
• Built-in slate mic for recording comments or talk back
• Onboard metronome for keeping the band in sync
