Furman : PL-PLUS-C-E Furman

PL-PLUS C E Power Conditioner w/Lights & Voltmeter 10A 230V
หมายเลขสินค้า : PL-PLUS-C-E

ราคา 12,600.00 บาท

ราคาปกติ : 14,000.00 บาท

ประหยัดไป 1,400.00 บาท



เลือกจำนวน :

เลือกสี : สีดำ

  • สีดำ

  • ฟรี!

    ประกัน 1 ปี

  • ฟรี!

    ปรึกษาด้านเทคนิก


แชร์ไปยัง :

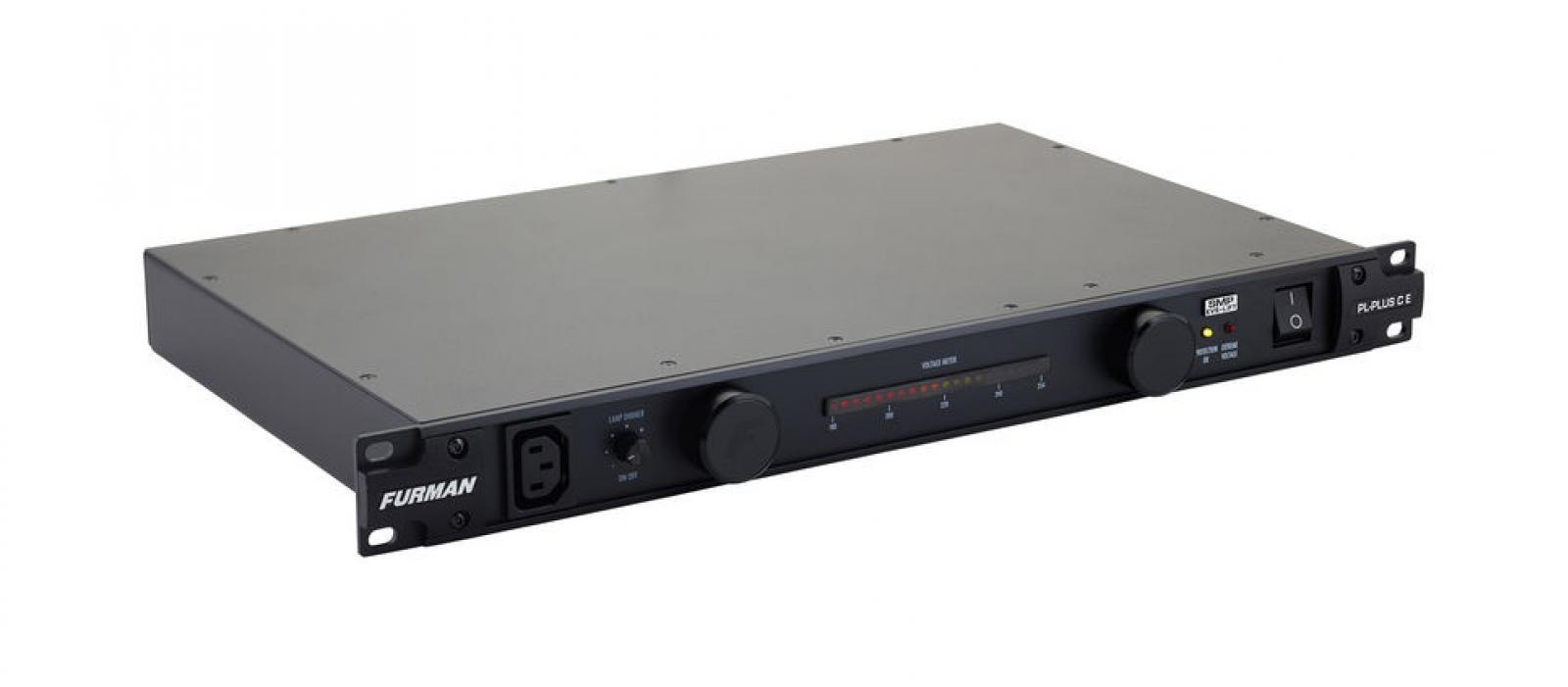

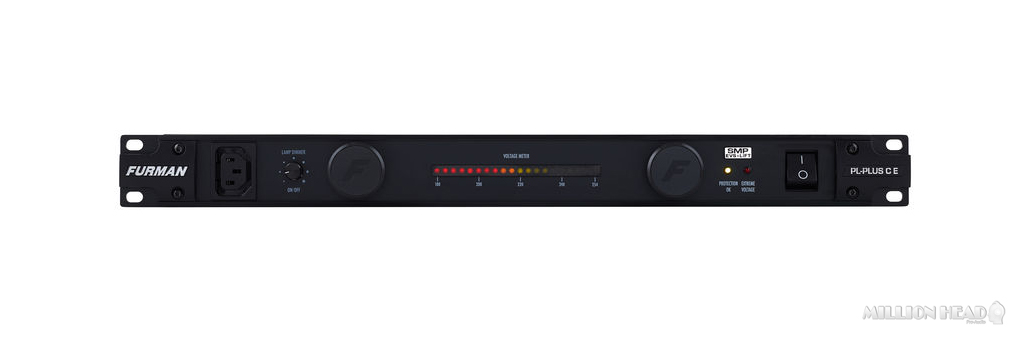

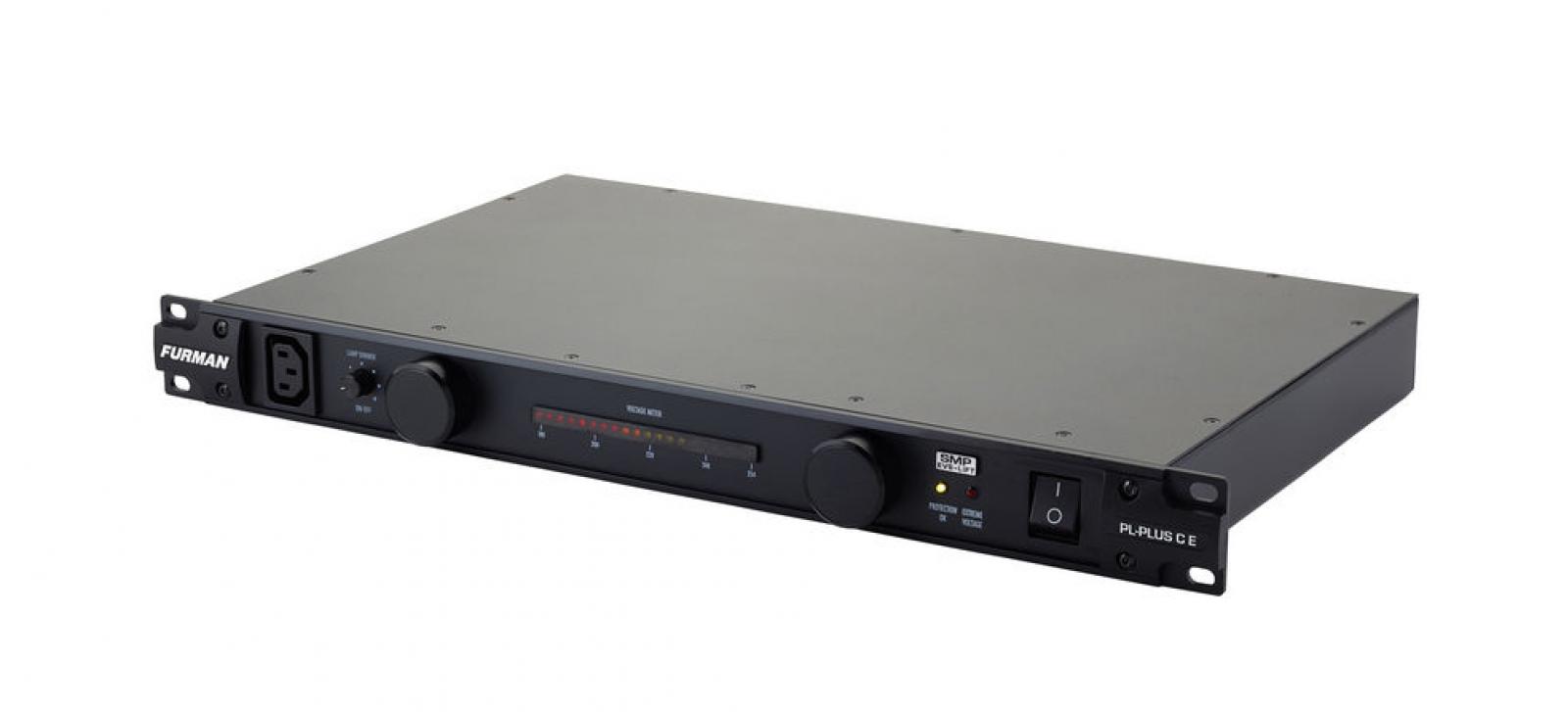

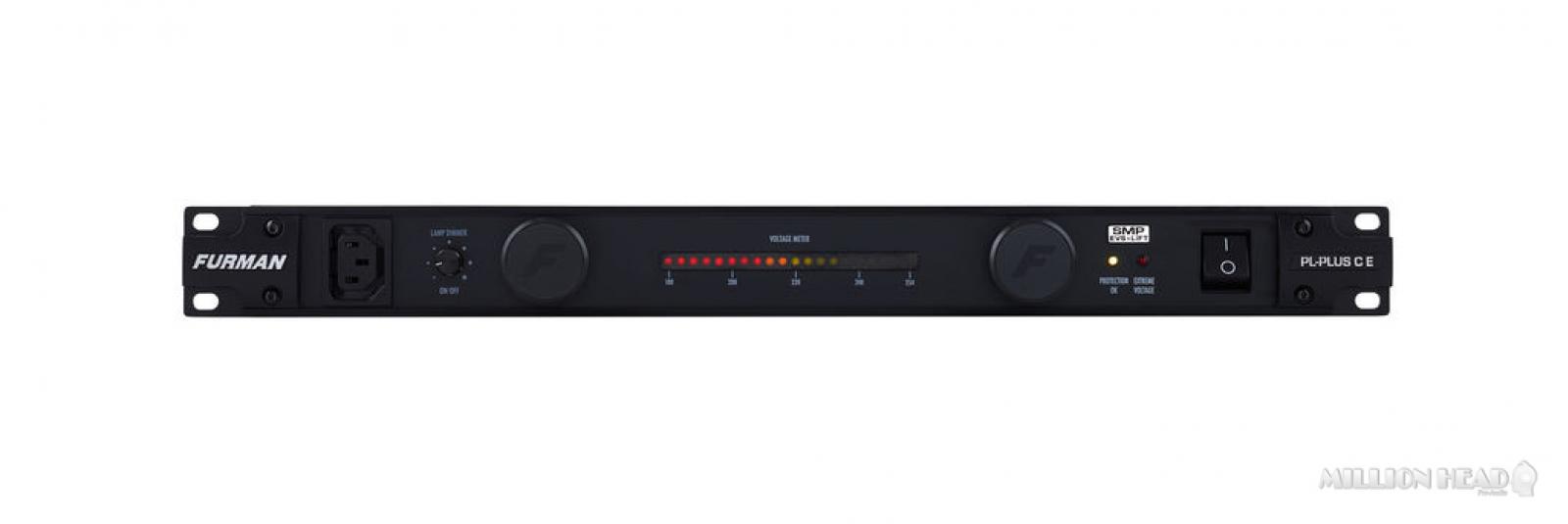

PL-PLUS C E Power Conditioner w/Lights & Voltmeter 10A 230V

เครื่องกรองกระแสไฟฟ้าแบบมีไฟ LED Lamp และโวลท์มิเตอร์ ขนาด 10 แอมป์ FURMAN PL-PLUS C E, Surge Protection, Noise Filtration, Voltage Protection, Pull-out Lights, 10 AMP Rating, 11 total outlets (10 rear panel outlets and one front panel convenience outlet), BNC Lamp Connector


The FURMAN PL-PLUS C E Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design.

The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world’s most advanced and comprehensive transient voltage surge supressors.



Features

  • Surge Protection Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
  • Noise Filtration LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
  • Voltage Protection Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
  • Pull-out Lights Dual smooth track retractable LED lights illuminate equipment in your rack.

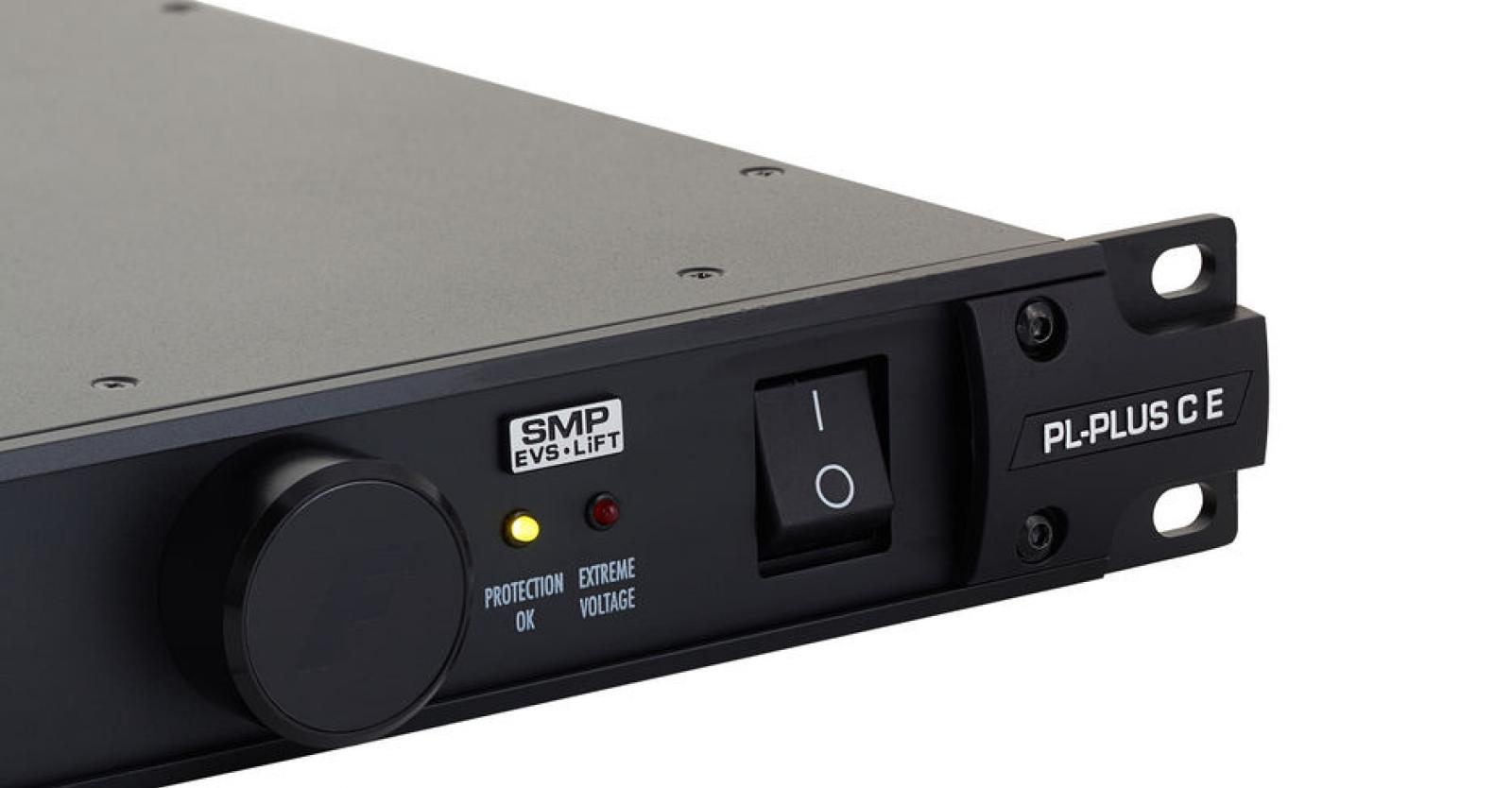

  • Diagnostic Lights LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

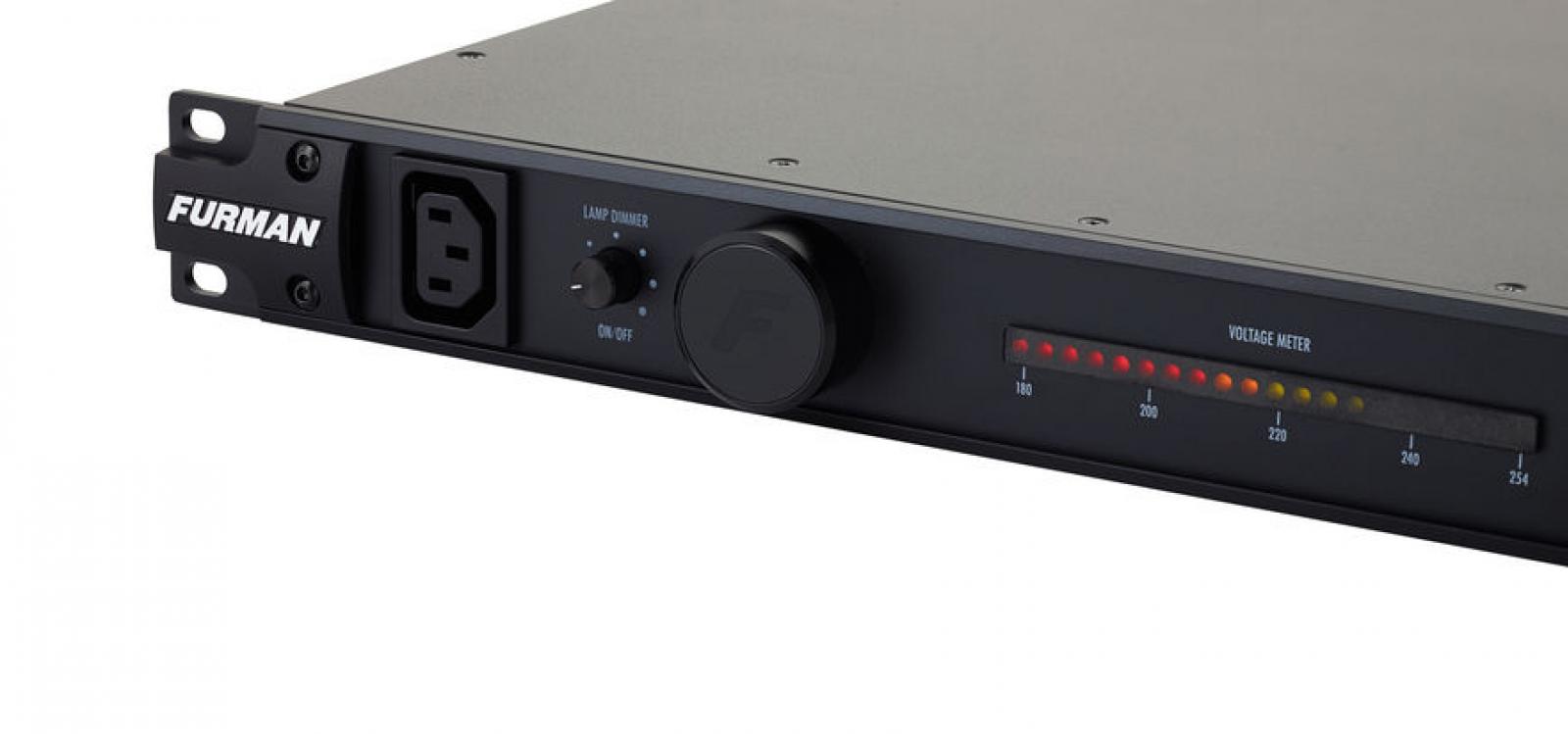

  • LED Voltmeter Segmented LED voltmeter monitors and displays incoming line voltage.
  • Isolated Banks Isolated outlet banks minimize inter-component interference and noise contamination.
  • 10 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

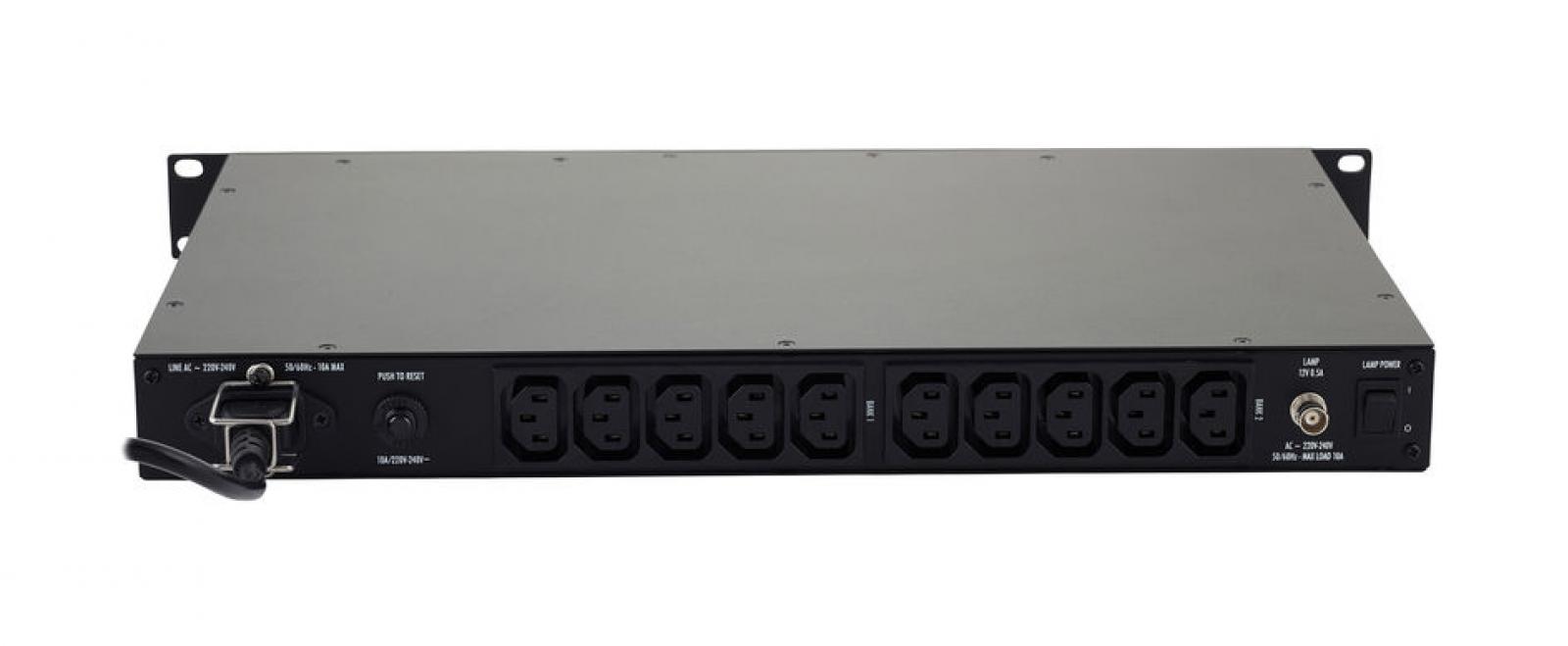

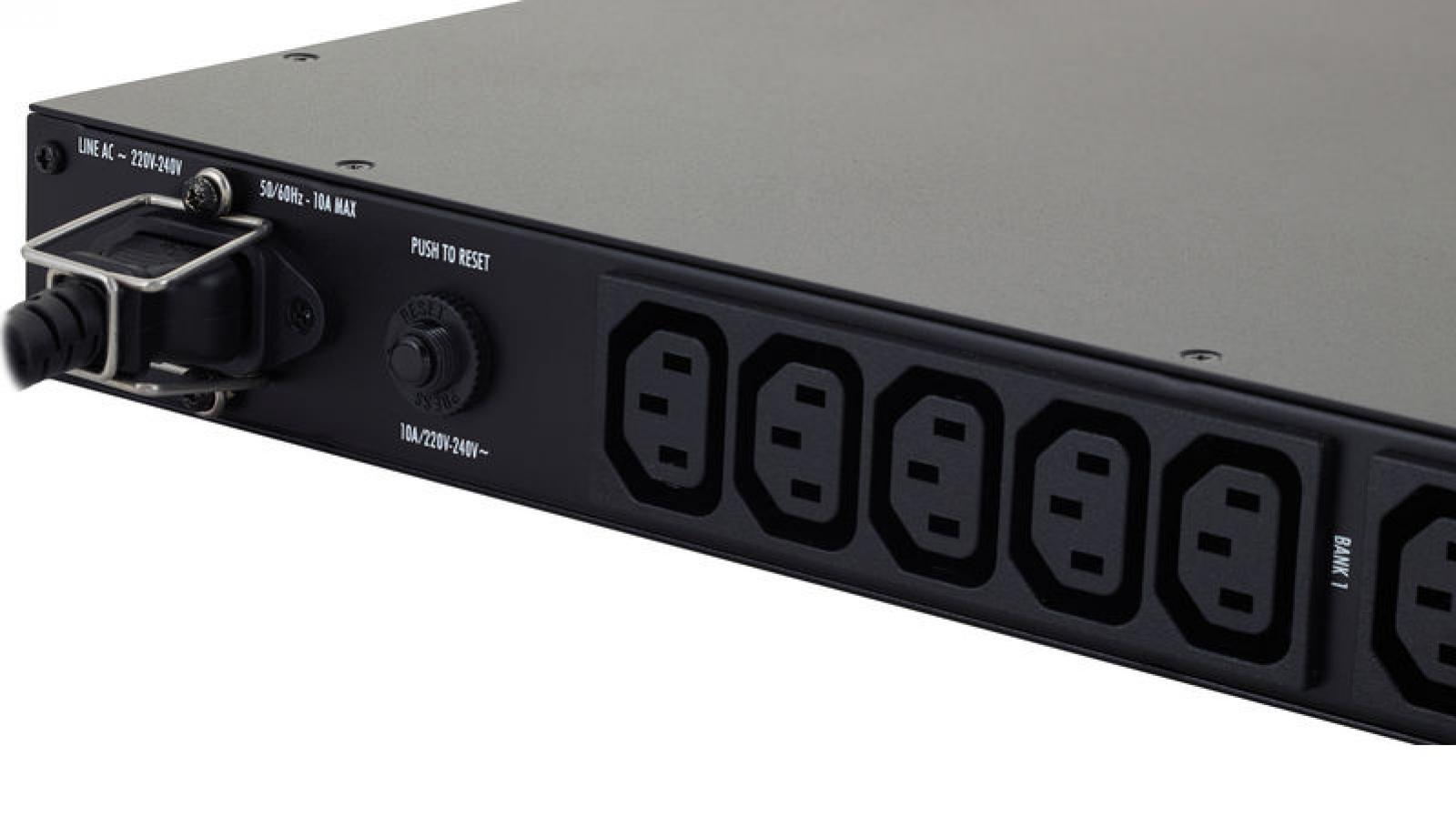

  • 11 total outlets (10 rear panel outlets and one front panel convenience outlet).

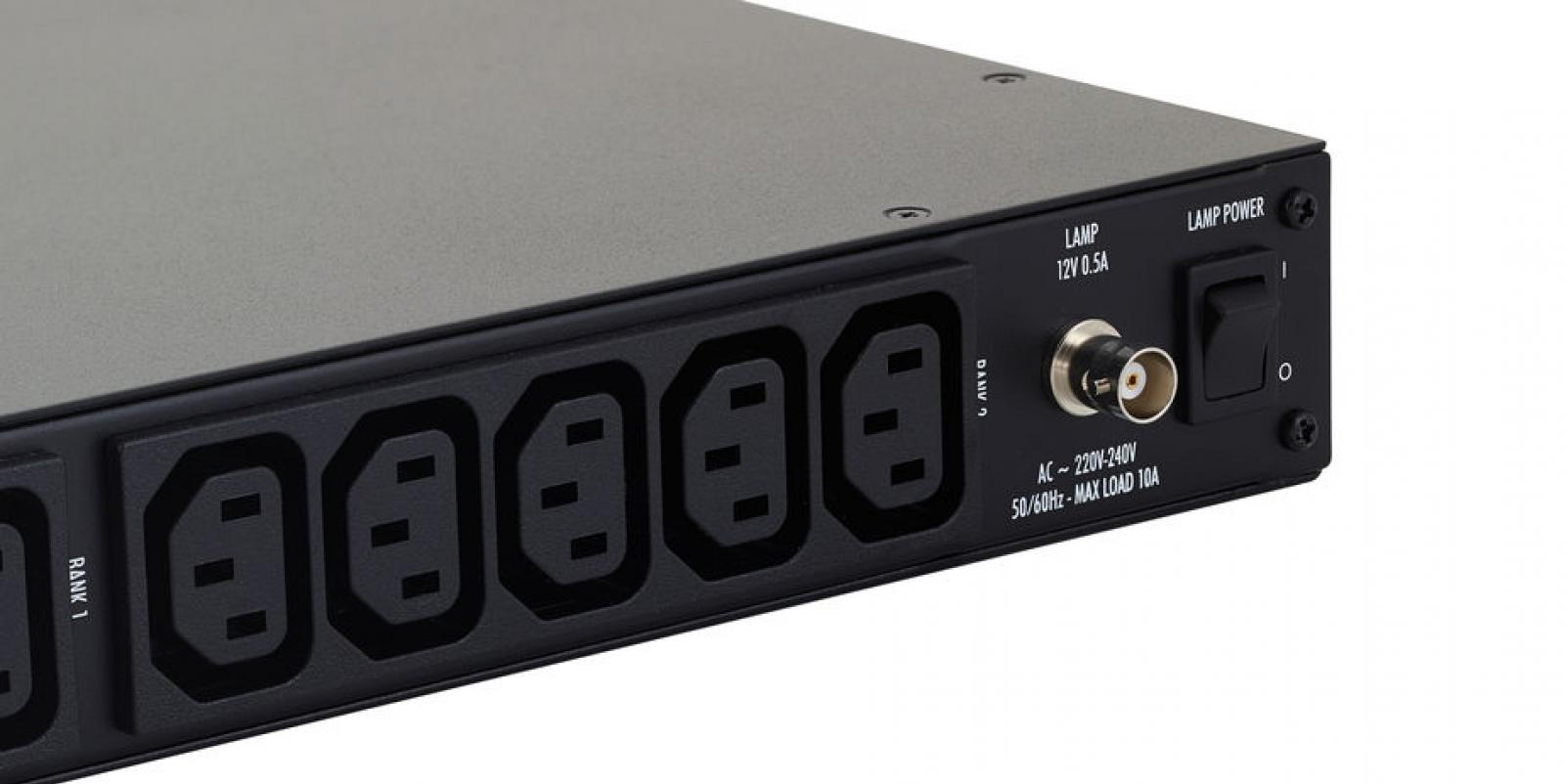

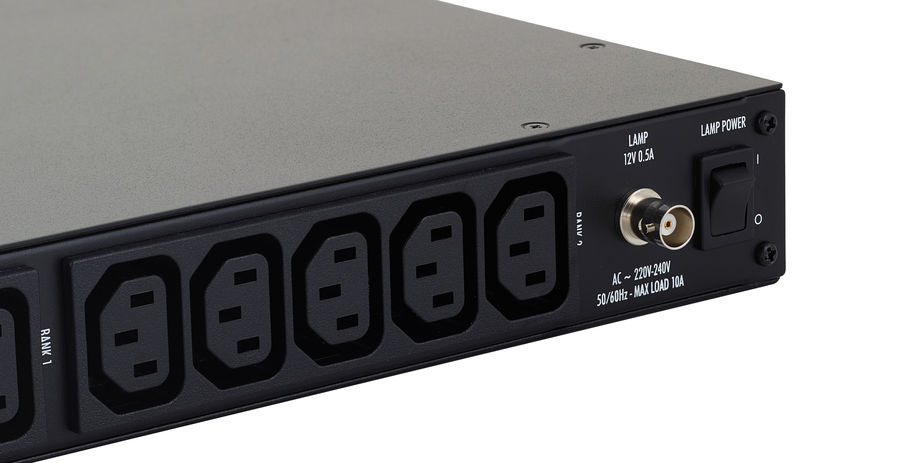

  • BNC Lamp Connector Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

  • CURRENT RATING: 10 amps
  • OPERATING VOLTAGE: 180 to 274 VAC
  • OVER VOLTAGE SHUTDOWN: 275 VAC typically
  • SPIKE PROTECTION MODES:Line to neutral, zero ground leakage
  • SPIKE CLAMPING VOLTAGE:376 VAC peak @ 3,000 Amps, 266 VAC RMS
  • RESPONSE TIME: 1 nanosecond
  • MAXIMUM SURGE CURRENT: 6,500 amps
  • NOISE ATTENUATION:10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz Linear attenuation curve from 0.05 - 100 Ohms line impedance
  • DIMENSIONS: 44.45mm H x 482.6mm W x 266.7mm D.
  • WEIGHT:5 kg
  • CONSTRUCTION:Steel chassis, 3mm brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
  • POWER CONSUMPTION: 25 VA
  • SAFETY AGENCY LISTING:CE
