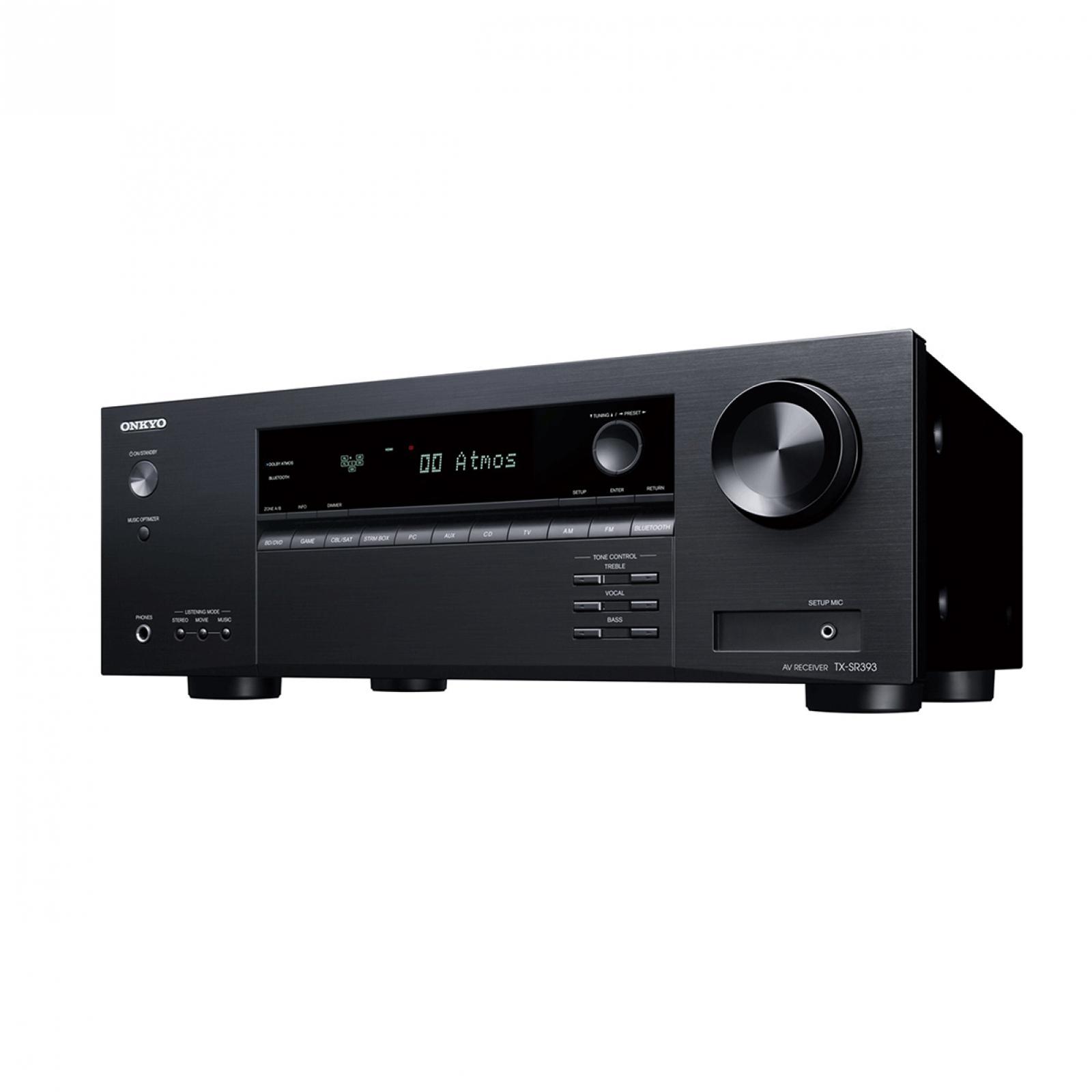

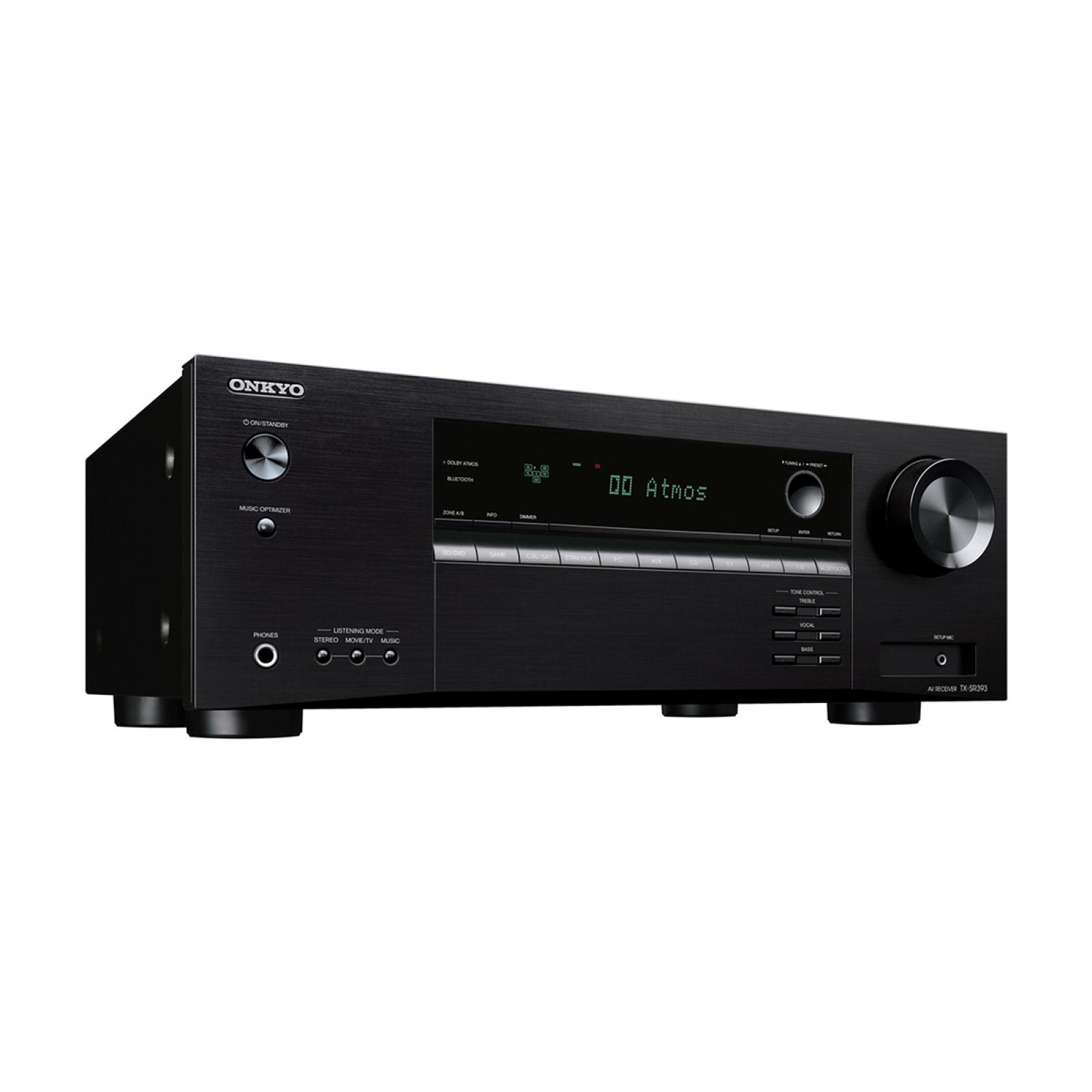

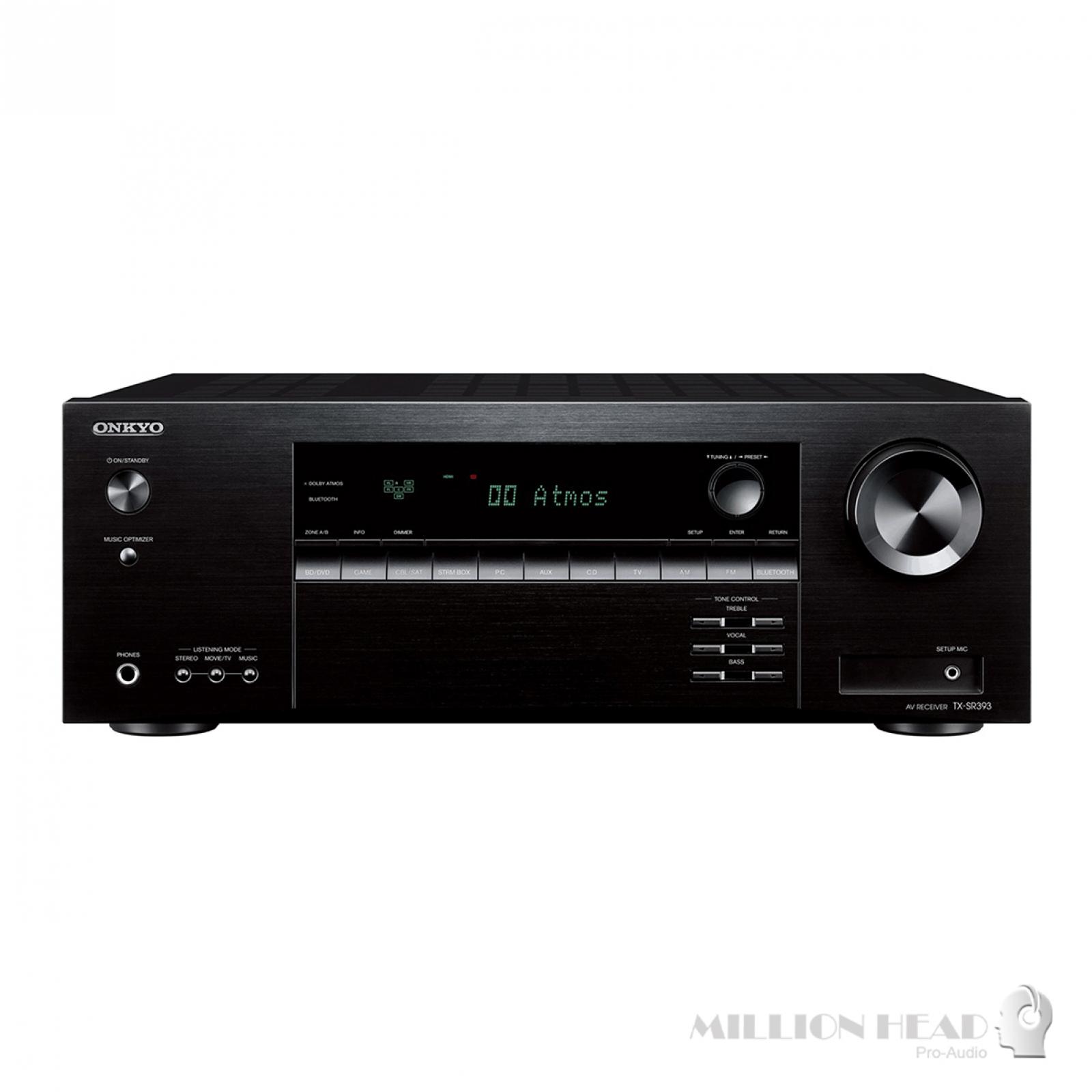

ONKYO TX-SR393
5.2-Channel AV Receiver
รีซีฟเวอร์ Onkyo TX-SR393 เติมประสบการณ์เสียงที่สมบูรณ์แบบผ่าน Dolby Atmos® และ DTS:X® เสียงที่ถูกผสมผสานให้ออกมาแบบ 3 มิติ Dolby Surround® และ DTS® Neural:X ช่วยเสริมการเล่นเสียง 3D ให้ยิ่งทรงพลังมากขึ้นเพื่อสร้างมิติที่สมจริงจากบนลงล่าง
PRODUCT HIGHLIGHTS
รีซีฟเวอร์ Onkyo TX-SR393 มีระบบ DTS Virtual:X เป็นเทคโนโลยีเสียงเซอร์ราวด์เสมือนจริงที่สร้างสนามเสียง 3 มิติที่สมจริงไม่ว่าจะเป็นระบบ 2.1, 3.1 และ 5.1 ก็สามารถมีเสียงเซอร์ราวด์จำลองได้โดยไม่ต้องใช้ลำโพงเซอร์ราวด์ เสียงเซอร์ราวด์ หรือลำโพงเซอร์ราวด์ด้านหลังใช้ DSP ที่ซับซ้อนเพื่อผู้ฟังที่อยู่ในจุดกึ่งกลางของเสียงนั้นได้รับเสียงที่รอบทิศทาง โดยไม่ข้อจำกัดไม่ว่าจะห้องขนาดเล็ก หรือ ขนาดใหญ่ก็ตาม คุณจะได้รับเสียงเซอร์ราวด์อย่างเท่าเทียม
ฟีเจอร์/Feature
-
155 watts per channel
-
Supports 4K/60p and HDR (HDR10, HLG, Dolby Vision®, BT.2020)
-
Dolby Atmos® and DTS:X® playback
-
Dolby Atmos Height Virtualizer* and DTS Virtual:X™
-
AccuEQ with subwoofer EQ and AccuReflex™
-
Discrete high-current analog amp system with 4-ohm drive capability
-
Bluetooth® technology and Advanced Music Optimizer™
-
Vocal Enhancer function improves voice audibility
-
Zone B line-out shares any audio source to components with an RCA input, such as wireless headphone docks, etc.
-
OSD window shows media format data for quick confirmation
-
* Enabled with a future firmware update.
TX-SR393 5.2-Channel AV Receiver
speaker layout to suit your room, from a space-saving 2.1-ch setup enhanced with 3D surround-sound courtesy Dolby Atmos Height Virtualizer* or DTS Virtual: X® to a 3.2.2-channel system for native object-audio playback.
AMPLIFIER FEATURES
-
High-Output Low-Noise Power Transformer
-
High-current 5-channel analog amplification system
-
Discrete high-power output transistors
-
Original low-impedance amp-circuit topology
VIDEO & AUDIO SUPPORT
-
Supports HDCP 2.2, 4K/60p, HDR (Dolby Vision, HDR10, HLG, BT.2020), 4:4:4 color-space, BT.2020, 3D Video, ARC (Audio Return Channel), DeepColor™, x.v.Color™, and LipSync via HDMI
-
Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD Master Audio™ decoding
-
Supports SACD (Super Audio CD) Playback via HDMI (2.8 MHz/2ch, multi-channel)
-
Dolby Atmos Height Virtualizer and DTS Virtual:X 3D sound processing
-
Dolby Surround® and DTS® Neural:X upmixing technologies
-
Premium 384 kHz/32-bit AKM multichannel DAC
-
Direct Mode for source-authentic stereo sound

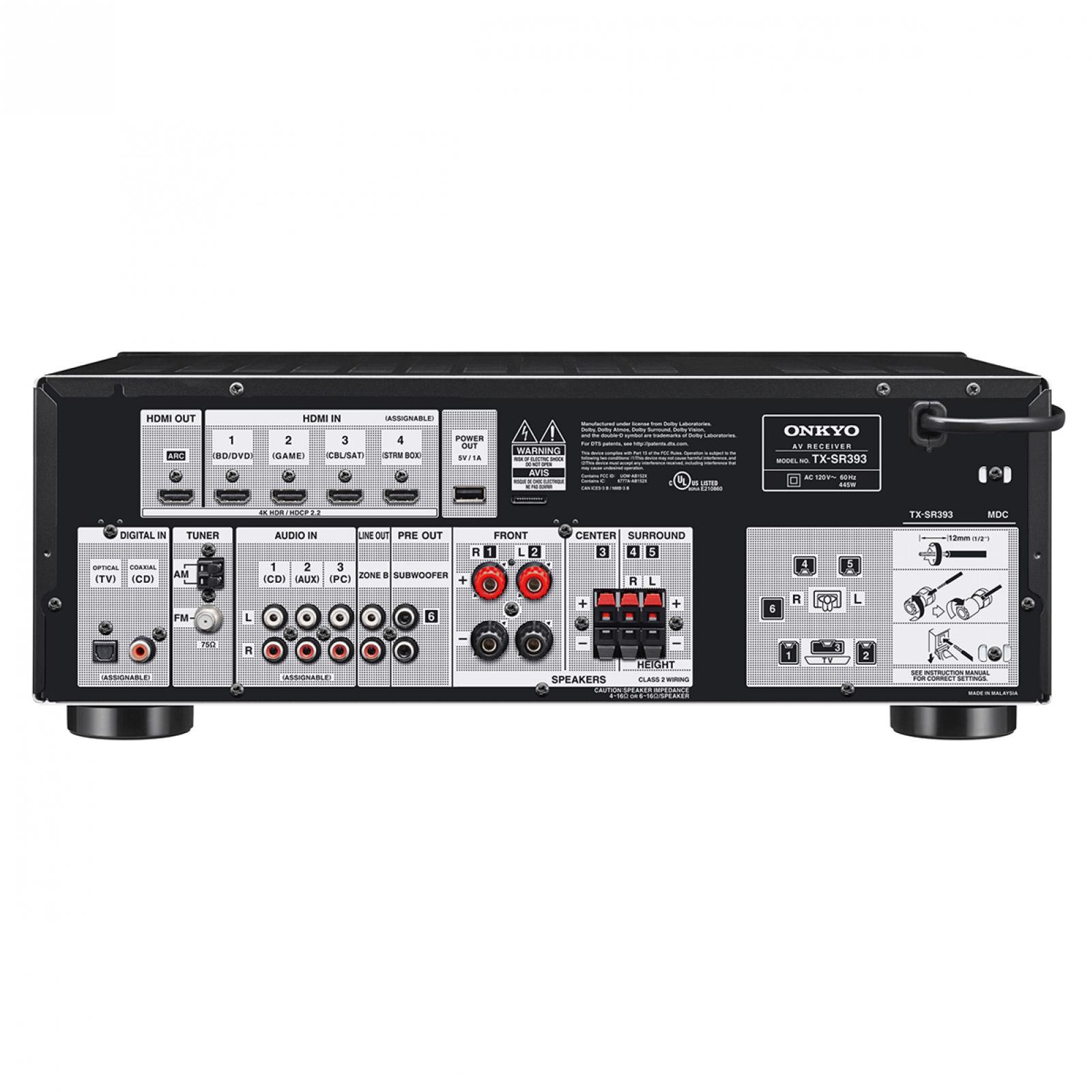

CONNECTION FEATURES
-
4 HDMI inputs and 1 output with ARC (Audio Return Channel)
-
2 digital audio inputs (1 optical and 1 coaxial, assignable)
-
3 analog audio inputs (assignable)
-
Zone B line out
-
2 subwoofer pre-outs
-
Speaker terminals (screw-type x 2 [Front L/R], lever-type x 3)
-
Rear USB power supply terminal (5 V/1 A) for media streaming devices
-
6.35 mm headphone output (front)
-
3.5 mm AccuEQ setup mic input (front)
ADVANCED FEATURES
-
AccuEQ Room Acoustic Calibration, Subwoofer EQ, and AccuReflex
-
Zone B line-out shares any audio source to components with an RCA input, such as mini hi-fi systems, integrated amps, wireless headphone docks, etc.
-
DSP-controlled Vocal Enhancer function boosts dialog audibility via remote keys or front-panel controls
-
Bluetooth wireless technology supports high-quality audio streaming from phones, tablets, and PCs
-
Advanced Music Optimizer improves playback quality of compressed audio
-
GUI with OSD via HDMI features media input/output information window for easy confirmation of playback settings
-
1080p Full HD to 4K Ultra HD upscaling over HDMI
-
Quick Connection Guide on rear panel for stress-free setup
-
A/V sync control (up to 500 ms in 5 ms steps at 48 kHz)
-
Direct Power On function switches on receiver when an input key is pressed on the remote control or front panel
-
HDMI passthrough function on standby
-
Tone controls for Front L/R channels (bass/treble)
-
3-Mode front-panel display dimmer (Normal/Dim/Dimmer)
-
AM/FM tuner with 40 random presets
-
Sleep timer
-
Simple remote control
Specs
AMPLIFIER SECTION
-
All Channels : 80 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC) 155 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)
-
THD+N (Total Harmonic Distortion + Noise) : 0.06% (20 Hz–20 kHz, 8 Ohms, 1 Channel Driven, 50 W)
-
Input Sensitivity and Impedance : 200 mV / 47k Ohms (Line)
-
Frequency Response : 10 Hz–100 kHz /+ 1 dB, -3 dB (Direct Mode)
-
Tone Control : ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
-
Signal-to-Noise Ratio : 109 dB (Line, IHF-A)
-
Speaker Impedance : 4 ohms–16 ohms
VIDEO SECTION
-
Video : 1.0 Vp–p ±5% / 75 Ohms (Composite)
TUNER SECTION
-
FM : 87.5 MHz–107.9 MHz
-
AM : 530 kHz–1,710 kHz
-
FM/AM Preset Memory : 40 stations
GENERAL
-
Power Supply : AC 120 V~, 60 Hz
-
Power Consumption : 445 W
-
Standby Power Consumption : 0.1 W
-
Dimensions (W x H x D) : 17 1/8" x 6 5/8" x 12 15/16" (435 x 160 x 328 mm)
-
Weight : 18.1 lbs (8.2 kg)
