Behringer : POWERPLAY HA4700 Behringer

4-Channel High-Power Headphones Mixing and Distribution Amplifier

An articulate headphone mix can make a tremendous difference to the outcome of a recording session. The 4-channel BEHRINGER HA4700 features superior performance, routing and mixing functions to accommodate the most discerning set of ears. When a conditioned mix has to reach multiple listeners, the HA4700 delivers in style.

All Together Now

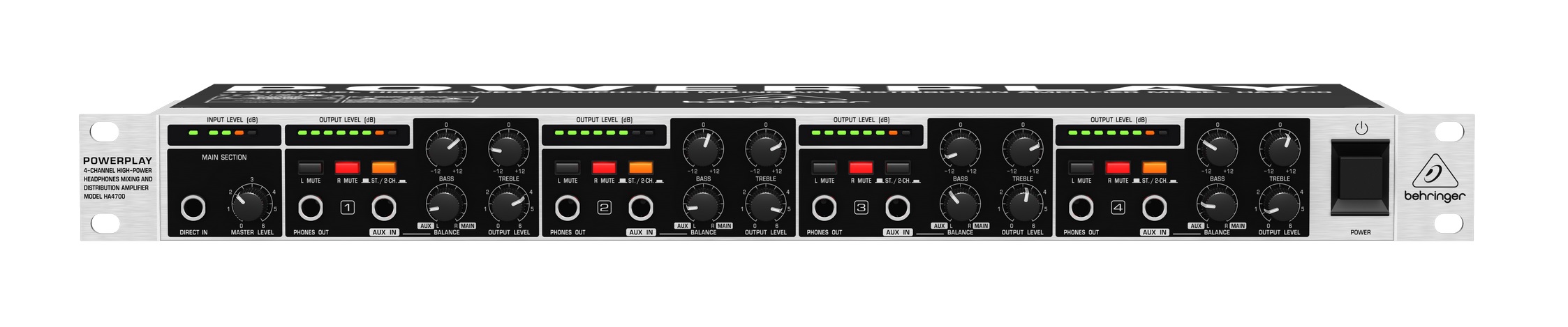

The HA4700 offers 4 high-power amplifiers that can drive loads down to 8 Ohms. Each amplifier features its own two-band EQ, 8-digit LED output meter, left and right Mute switches, a ST./2-CH switch to toggle between stereo or double mono, and a 1/4" stereo AUX input to mix in any instrument or sound source. The front panel gives you one Phones Out 1/4" jack per channel. A Main section features a 5-segment LED output meter, Direct In 1/4" jack and Master Level dial.

Connections

On the back panel you’ll find two additional ¼ " outputs per channel. That means up to 12 pairs of headphones can listen to 4 separate mixes at once. The back panel also features stereo ¼ " and XLR Inputs and Outputs, so you can connect multiple HA4700 units for even greater listening capacity. Meanwhile, the HA4700‘s ultra low-noise 4580 operational amplifiers deliver the audiophile-grade audio performance.

Features

• Professional, multi-purpose headphones amplifier system for stage and studio applications
• Highest sonic quality with virtually all types of headphones >8 Ohms even at maximum volume
• 4 independent high-power amplifier sections provide up to four stereo mixes with individual balance controls
• Each input/aux section can be separately adjusted for 'more me' mixing
• Stereo Aux input for each channel allows you to mix in any instrument or sound source
• Multi-functional Stereo/2-Channel switch on each channel allows for either stereo playback or double mono operation
• Ultra-musical High and Low EQ per channel for perfect sound adaptation
• Output level control with accurate 8-digit LED output meter per channel
• Left/right Mute switches for each channel allow two different mixes in mono mode
• 1 front and 2 rear TRS output connectors per channel
• Direct front panel input connector for easy connection of any sound source
• Parallel Main outputs allow cascading of several headphones amplifiers
• Servo-balanced inputs and outputs on 1/4" TRS and gold-plated XLR connectors
• Toroidal transformer for lowest noise interference and highest audio quality
• Conceived and designed by BEHRINGER Germany
