JBL : Bar 1000 Pro
Truly Wireless Soundbar with True Dolby Atmos®, DTS:X, and MultiBeam™ Surround Sound, 10” Down-Firing Wireless Subwoofer.
Soundbar ของ JBL Bar 1000 Pro 7.1.4 มี MultiBeam™ และไดรเวอร์ระบบยิงเสียงสี่ตัว — สองตัวที่บาร์และสองตัวในลำโพงเซอร์ราวด์แบบถอดได้ซึ่งใช้พลังงานจากแบตเตอรี่ — เพื่อห่อหุ้มคุณไว้ในทรงกลมของระบบเสียงรอบทิศทาง Dolby Atmos® และ DTS:X 3D เสียงพร้อมเวทีเสียงที่กว้างและกว้างขวางโดยไม่จำเป็นต้องเดินสายเพิ่มเติม สัมผัสประสบการณ์ภาพยนตร์ เพลง และเกมพร้อมเสียงที่ทำให้คุณรู้สึกเหมือนอยู่ในเหตุการณ์ด้วยกำลังขับรวม 880W และเสียงเบสที่หนักแน่นจากซับวูฟเฟอร์ขนาด 10 นิ้ว
เทคโนโลยี PureVoice ของเรารับประกันเสียงพูดที่ชัดเจนแม้ในขณะที่เสียงรบกวนอื่นๆ ดังที่สุด เพลิดเพลินกับเพลงโปรดของคุณบน AirPlay, Alexa Multi-Room Music (MRM) และ Chromecast ในตัว™ ทำให้ดูเหมือนมีวงดนตรีอยู่ด้วย สนุกสนานไปกับค่ำคืนโดยไม่ต้องออกจากห้องนั่งเล่น

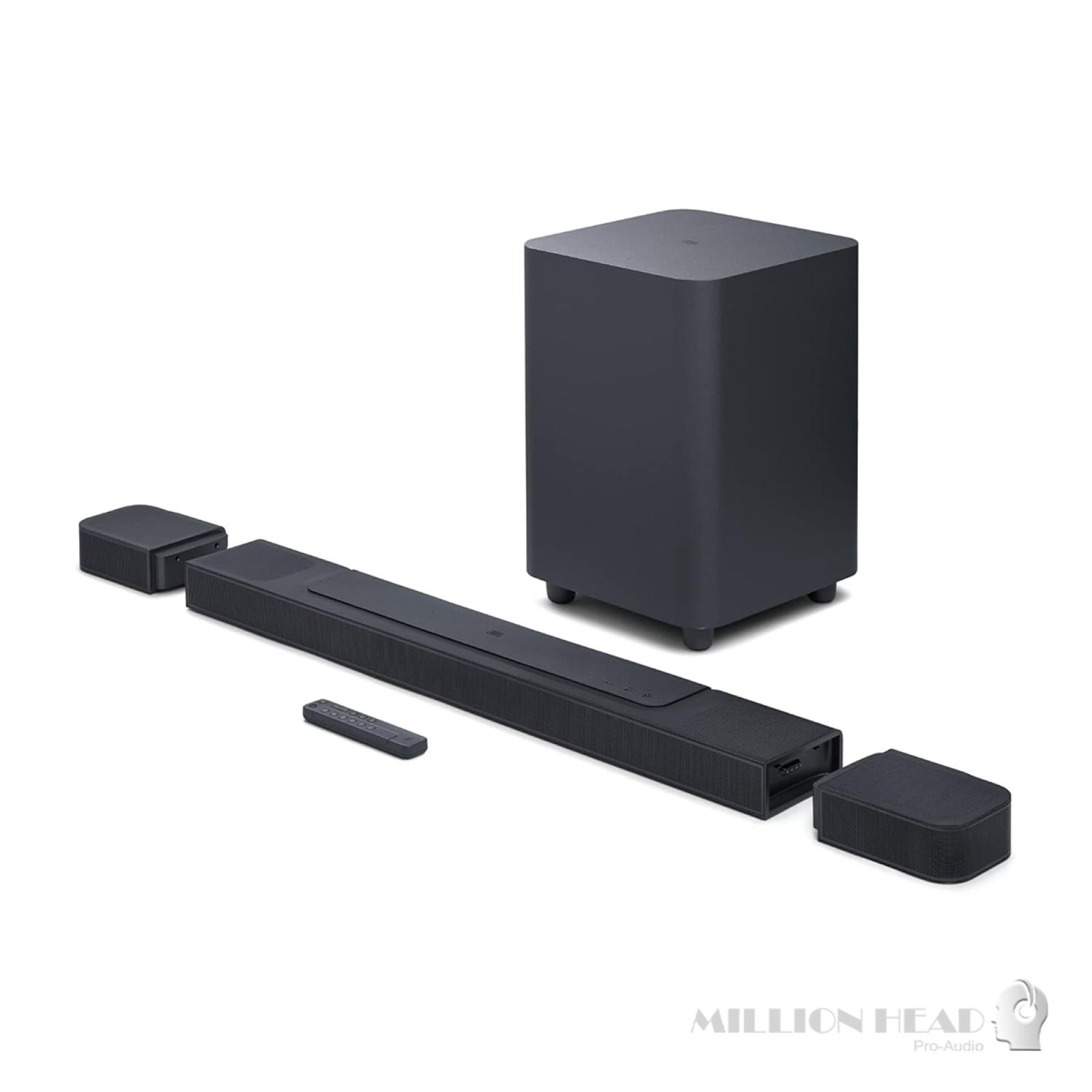

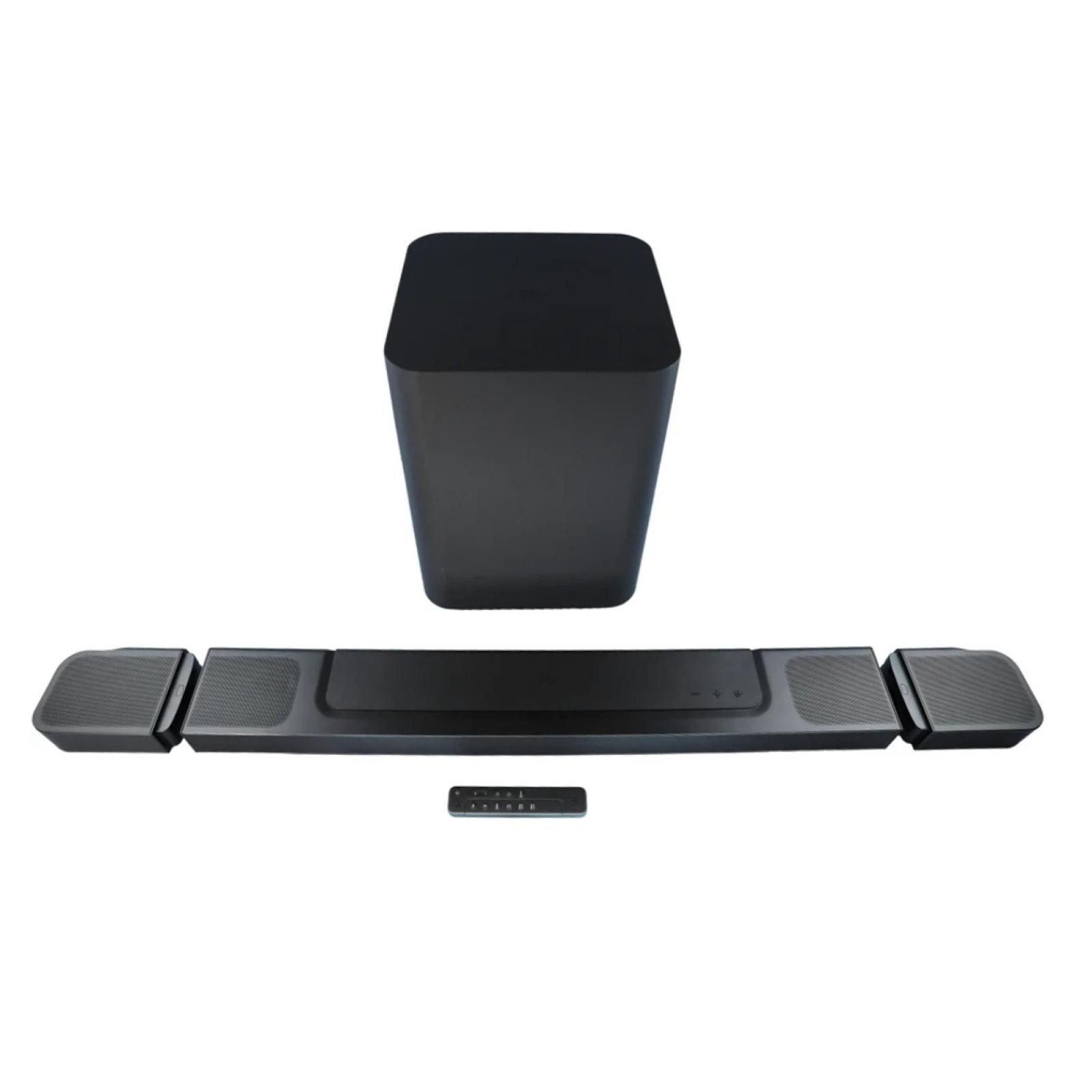

The JBL Bar 1000 Pro 7.1.4 Soundbar has MultiBeam™ and four up-firing drivers—two in the bar and two in the detachable battery-powered surround speakers—to envelop you in a sphere of Dolby Atmos® and DTS:X 3D surround sound with a wide, spacious soundstage with no need to draw extra cables. Experience movies, music and games with sound that puts you right in the middle of the action, thanks to 880W of total output power and thunderous bass from the 10” subwoofer.
Our PureVoice technology ensures clear speech even when other noises are strongest. Enjoy your favourite music on AirPlay, Alexa Multi-Room Music (MRM), and Chromecast built-in™, making it seem like the band is present. Have a great night out without leaving your living room.
ฟีเจอร์/Features
-
True dolby atmos®, DTS:X, and multi beam™ surround sound
-

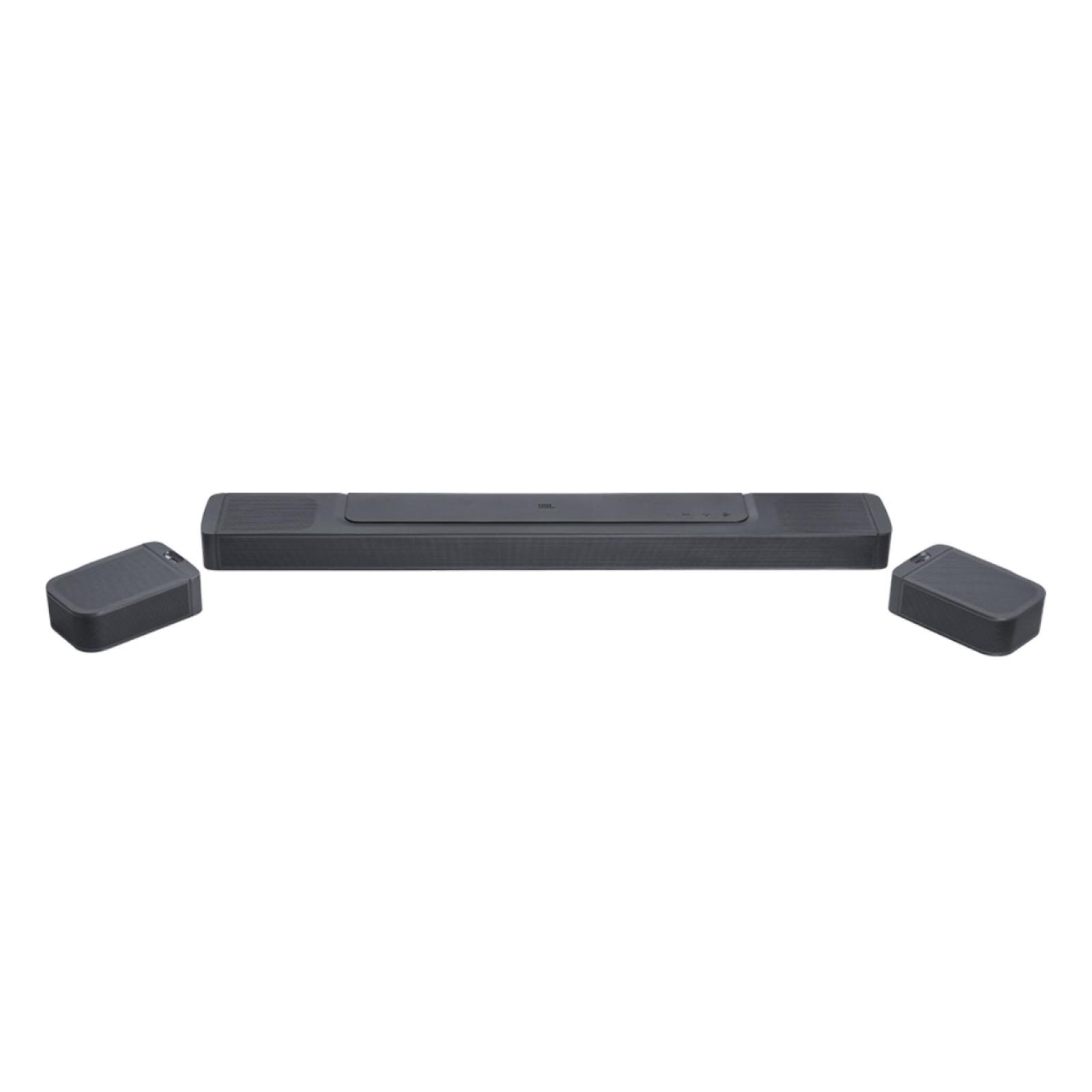

Real surround sound with detachable surround speakers
-
10” wireless subwoofer
-
Pure voice dialogue enhancement technology
-
880W output power
-
Built-in wifi with airplay, alexa multi room music and chromecast built-in™
-
Works with voice assistant-enabled speakers
-
Hdmi earc with 4k dolby vision pass-through
-
Easy sound calibration
TECHNICAL SPECIFICATIONS
-

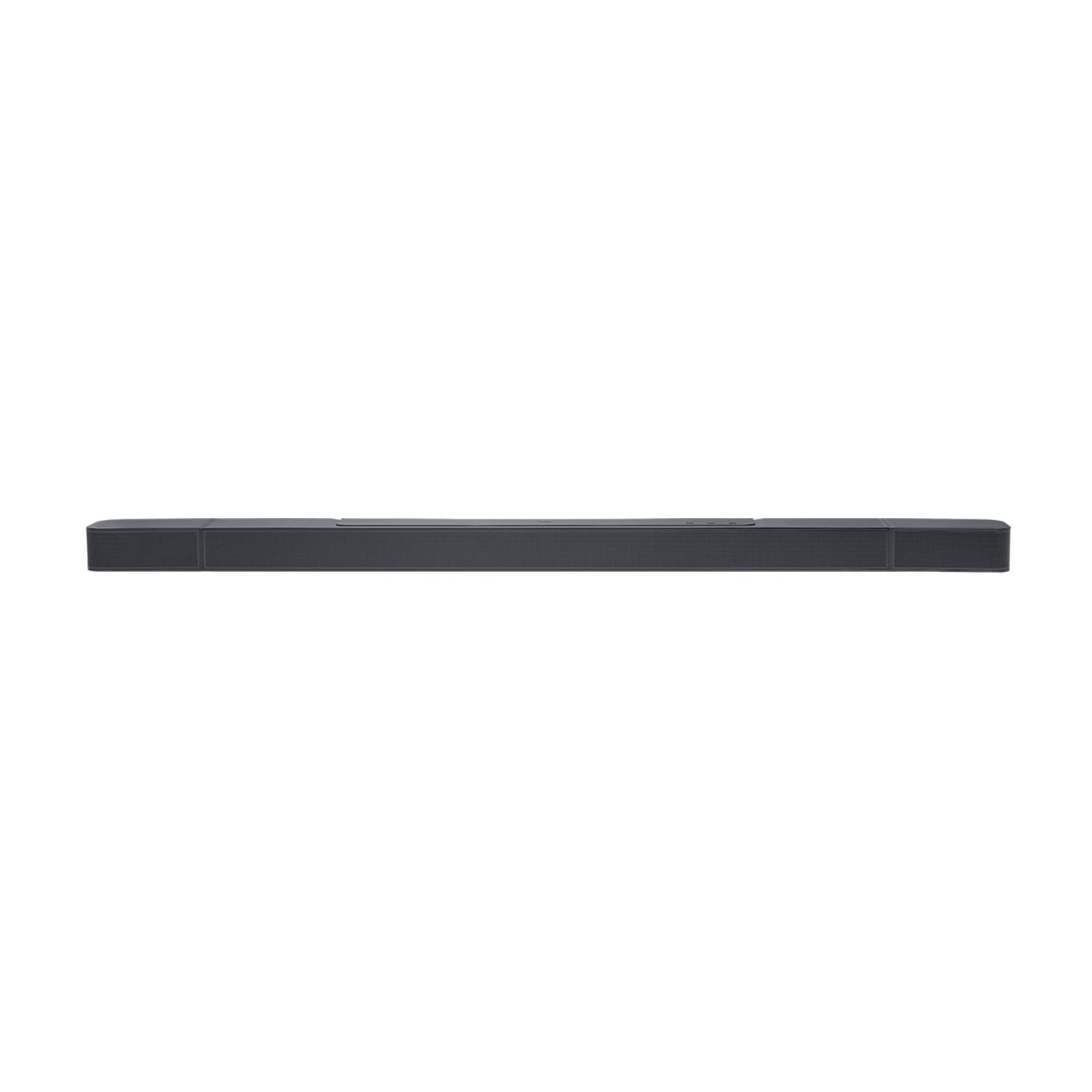

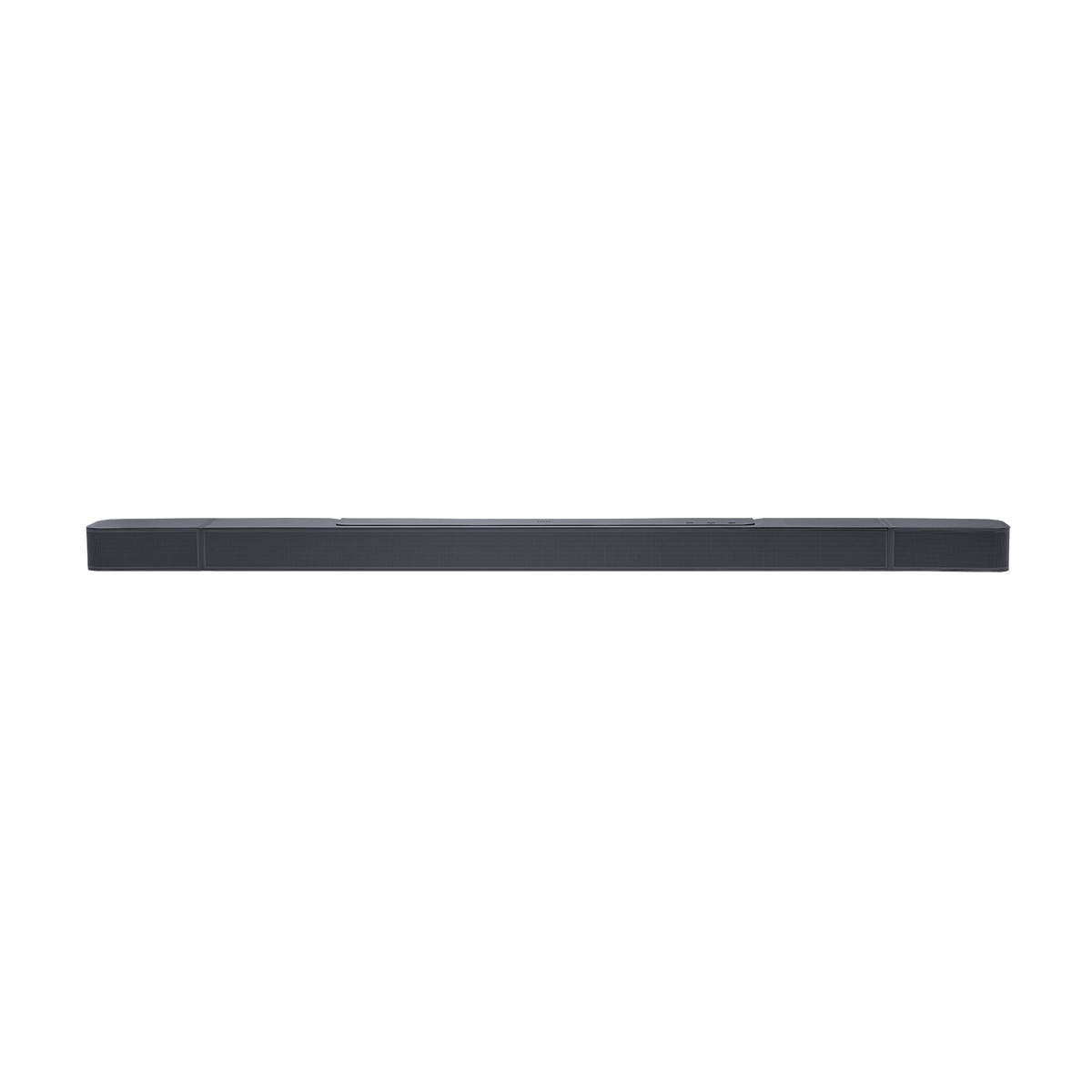

Model: BAR 1000 (soundbar unit), BAR 1000 SURROUND (detachable speaker) BAR 1000 SUB (subwoofer unit)
-
Sound system: 7.1.4 channel
-
Power supply: 100 - 240V AC, ~ 50/60Hz
-
Total speaker power output (Max @THD 1%): 880W
-
Soundbar output power (Max @THD 1%): 440W
-
Surround speaker output power (Max @THD 1%): 2x 70W
-
Subwoofer output power (Max @THD 1%): 300 W
-
Soundbar transducer: 5 x (46x90)mm racetrack drivers, 3x 0.75” (20mm) tweeters, 2 x 2.75” (70mm) up-firing full-range drivers
-
Surround speaker transducer: 0.75” (20mm) tweeters, 2.75” (70mm) up-firing full-range drivers
-

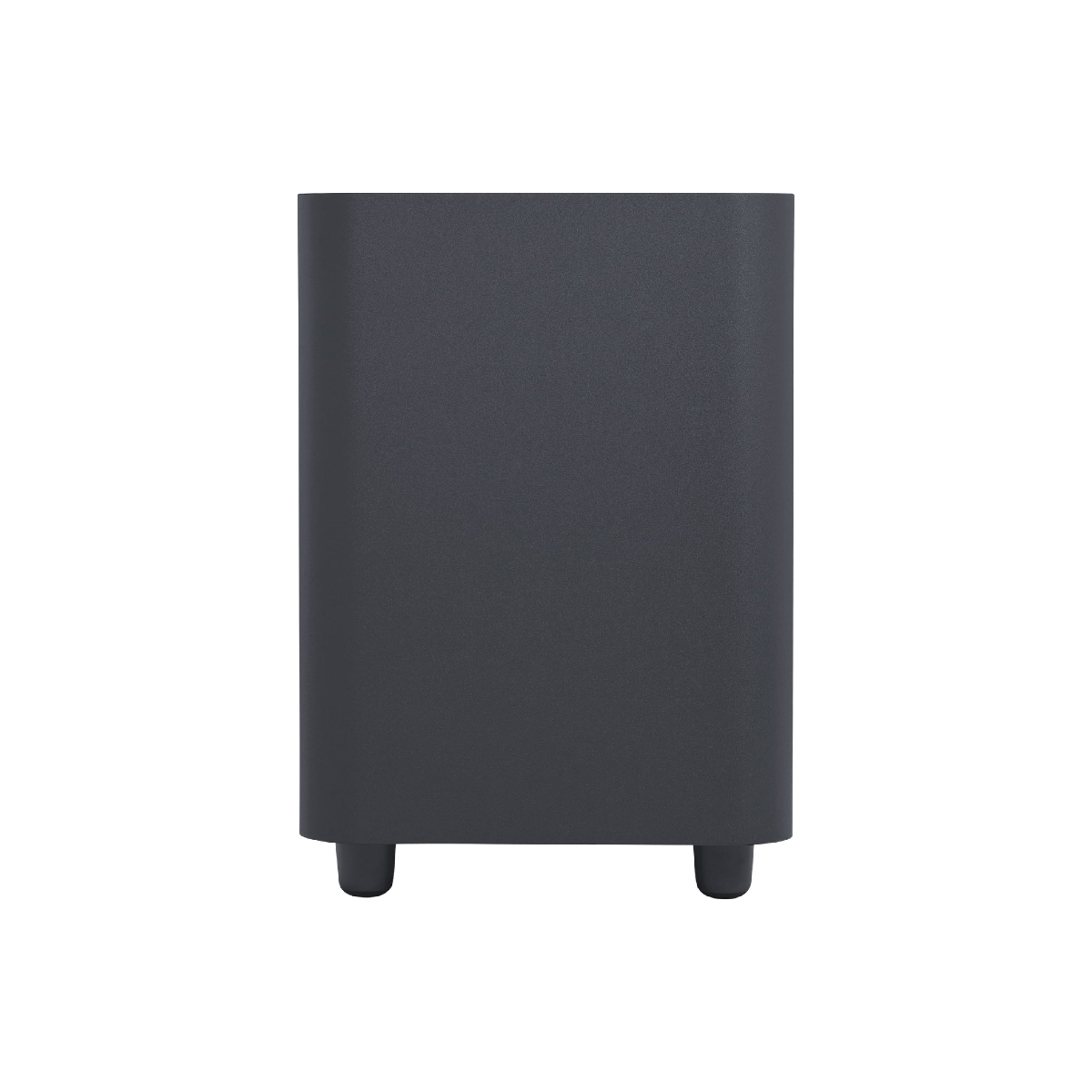

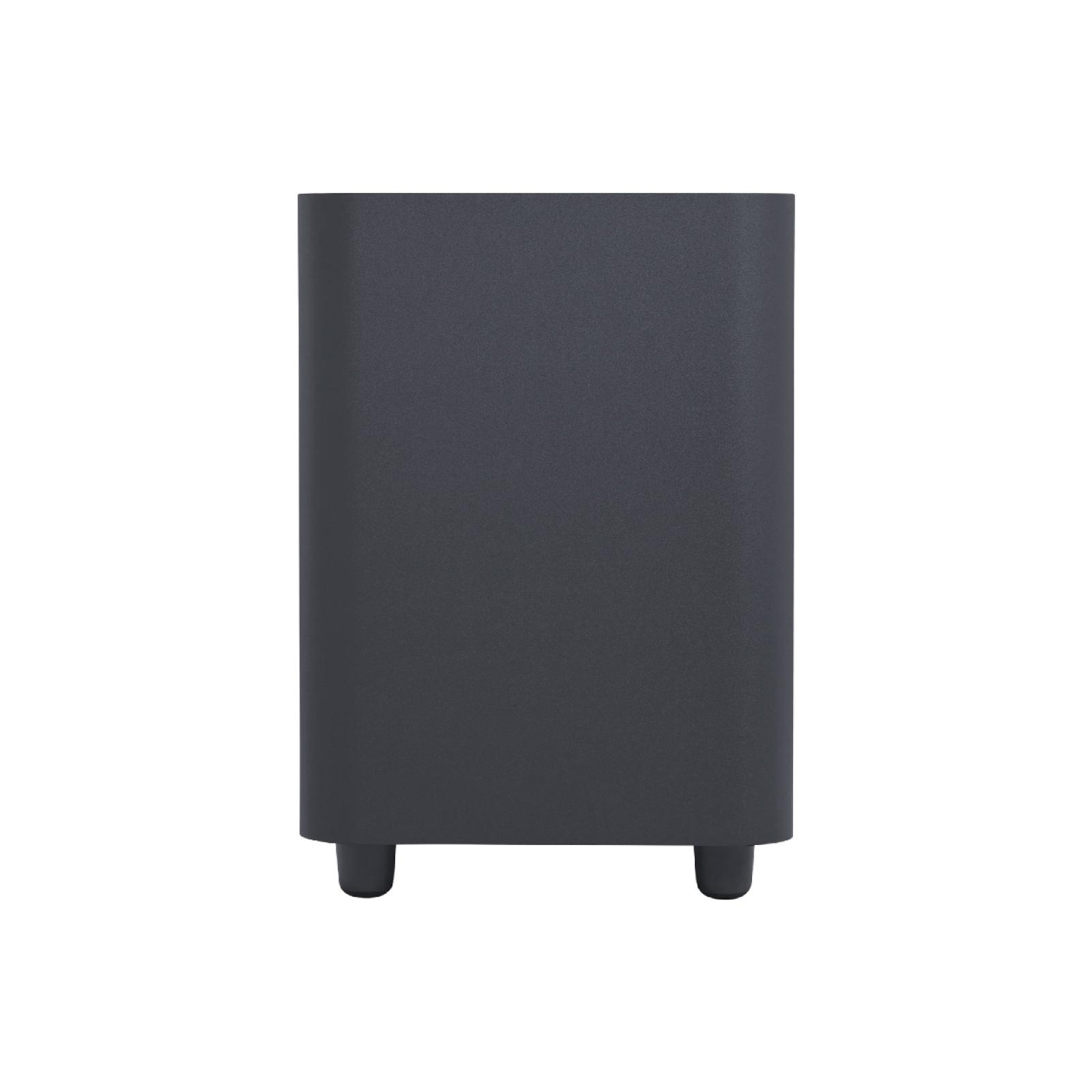

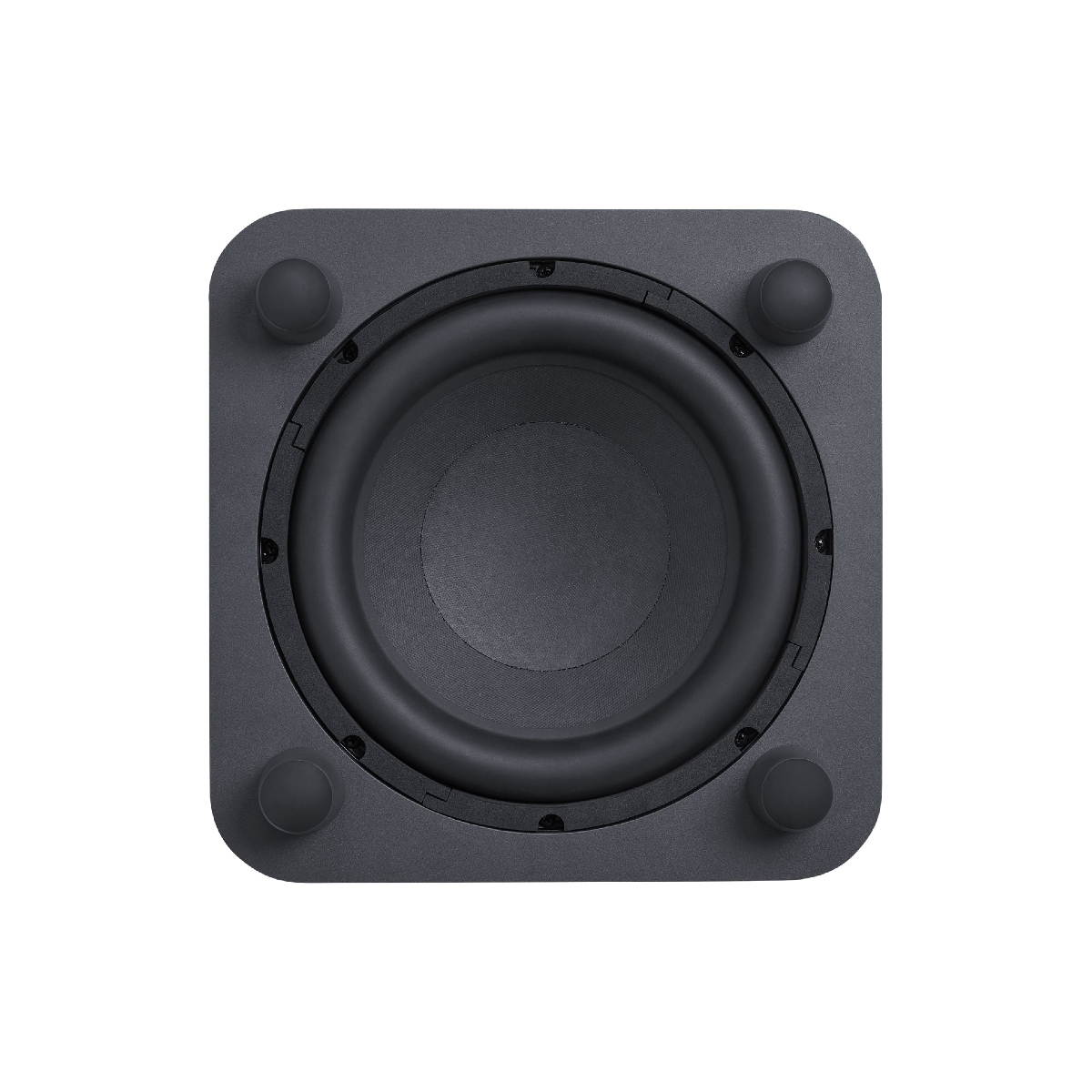

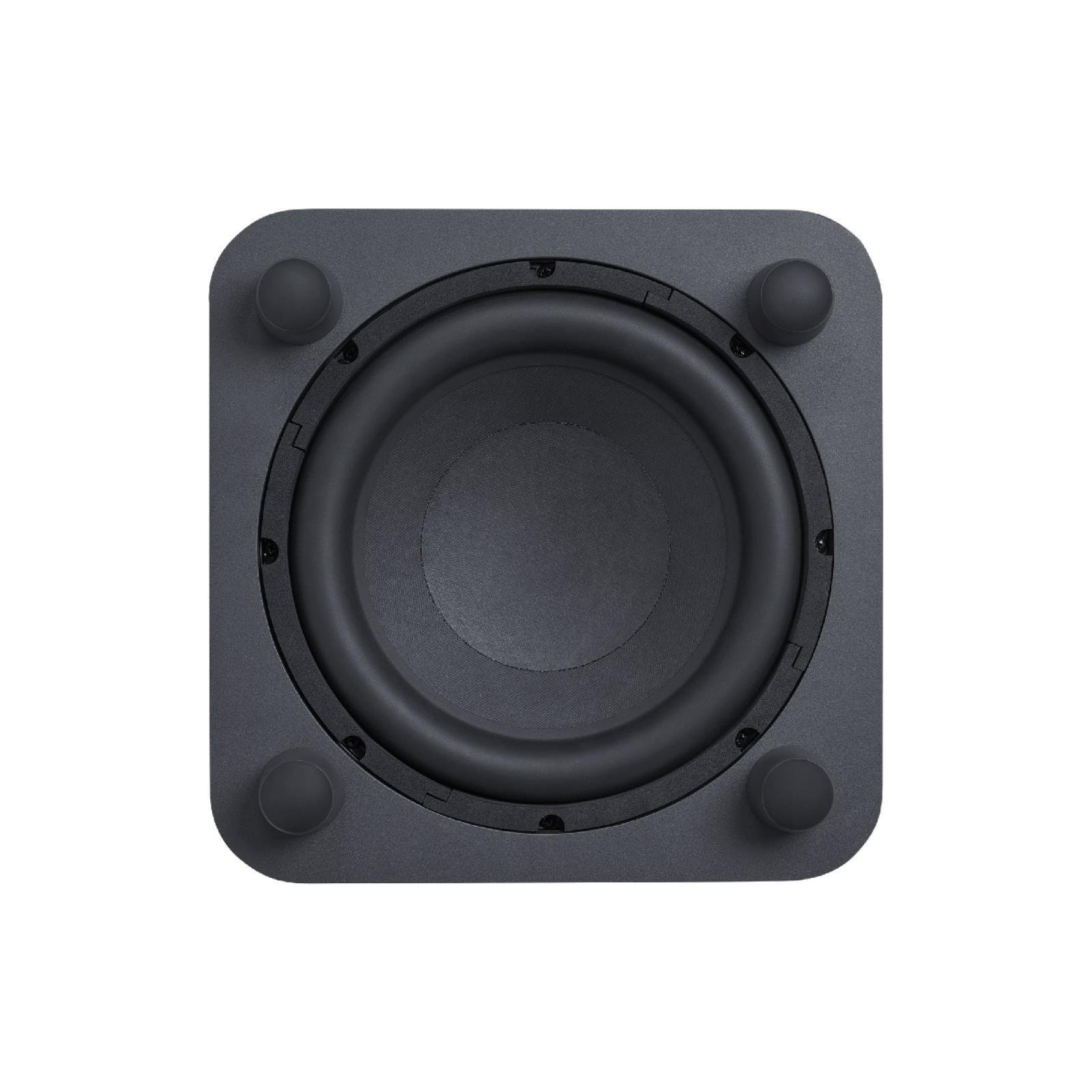

Subwoofer transducer: 10” (260mm)
-
Networked standby power: < 2.0W
-
Operating temperature: 0°C - 45°C
-
Lithium battery: 3.635V, 3283mAh
-
Detachable surround speaker playtime: up to 10 Hours (may vary according to content type and volume level)
VIDEO SPECIFICATION
-

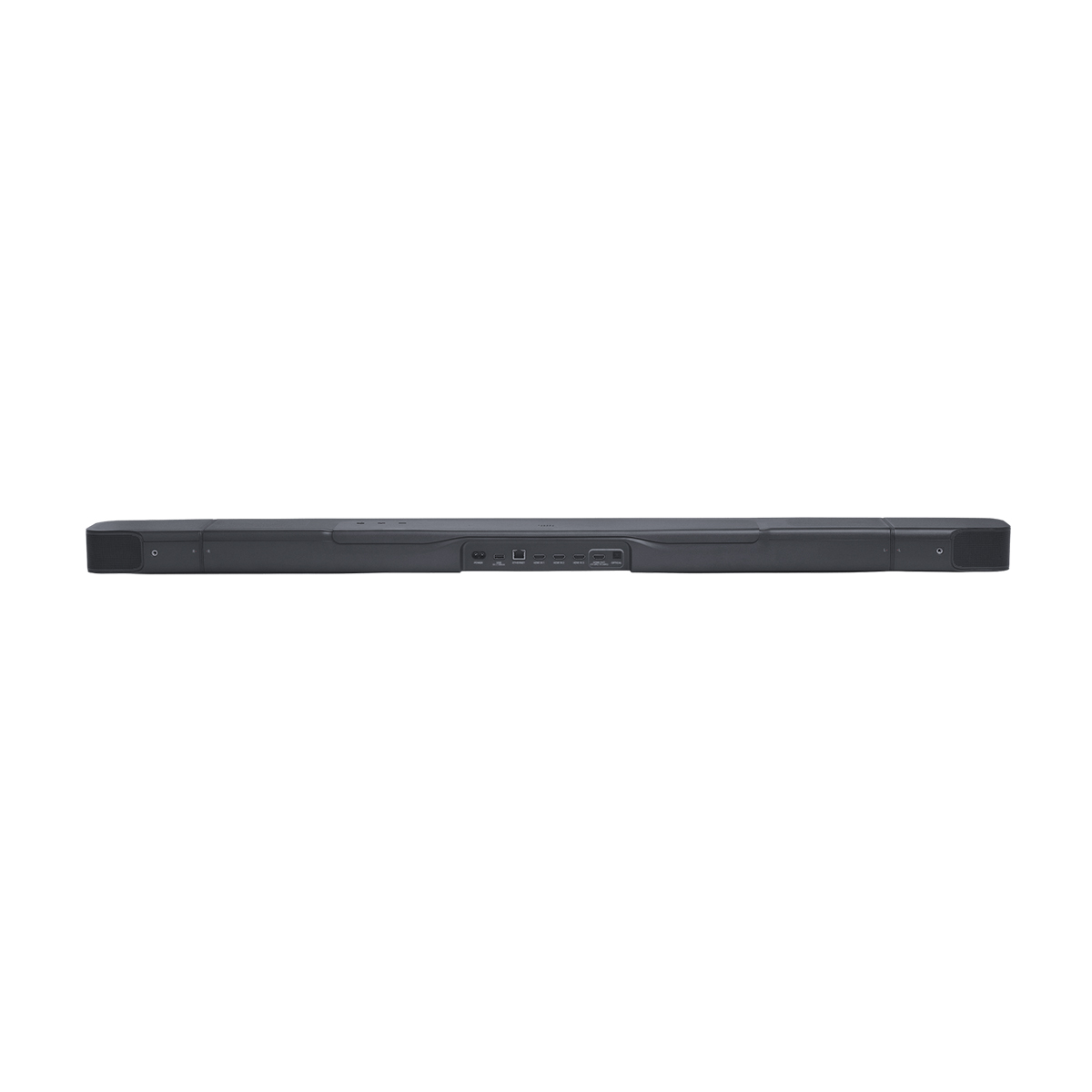

HDMI video input: 3
-
HDMI video output (with Enhanced Audio Return Channel, eARC): 1
-
HDMI HDCP version: 2.3
-
HDR pass-through: HDR10, Dolby Vision
AUDIO SPECIFICATION
-
Frequency response: 33Hz - 20kHz (-6dB)
-
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
USB SPECIFICATIONS
-
USB port: Type A
-
USB rating: 5V DC, 0.5A
-
Supported file format: MP3
-
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
-
MP3 sampling rate: 16 - 48 kHz
-
MP3 bitrate: 80 - 320 kbps
-
USB port: Type A
WIRELESS SPECIFICATIONS
-
Bluetooth version: 5.0
-
Bluetooth profile: A2DP 1.2, AVRCP 1.5
-
Bluetooth transmitter frequency range: 2400MHz - 2483.5MHz
-
Bluetooth transmitter power: <15dBm (EIRP)
-
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
-
2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
-
2.4G Wi-Fi transmitter power: < 20dBm (EIRP)
-
5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725-5.825GHz
-
5G Wi-Fi transmitter power: 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.47 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)
-
2.4G wireless frequency range: 2406 - 2474MHz
-
2.4G wireless power: <10dBm (EIRP)
DIMENSION SPECIFICATIONS
-
Main soundbar dimensions (W x H x D): 884 x 56 x 125 mm / 34.8” x 2.2” x 4.9”
-

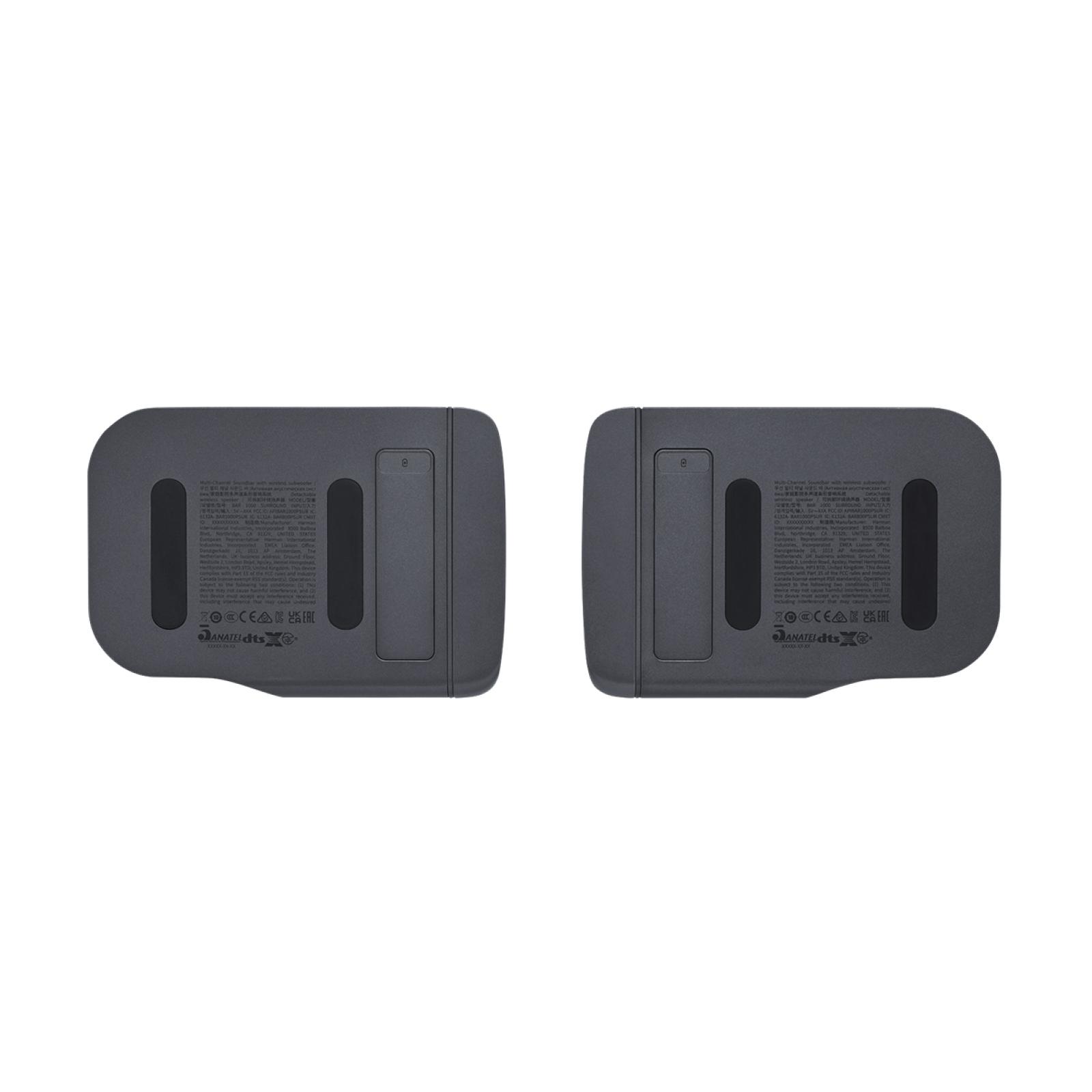

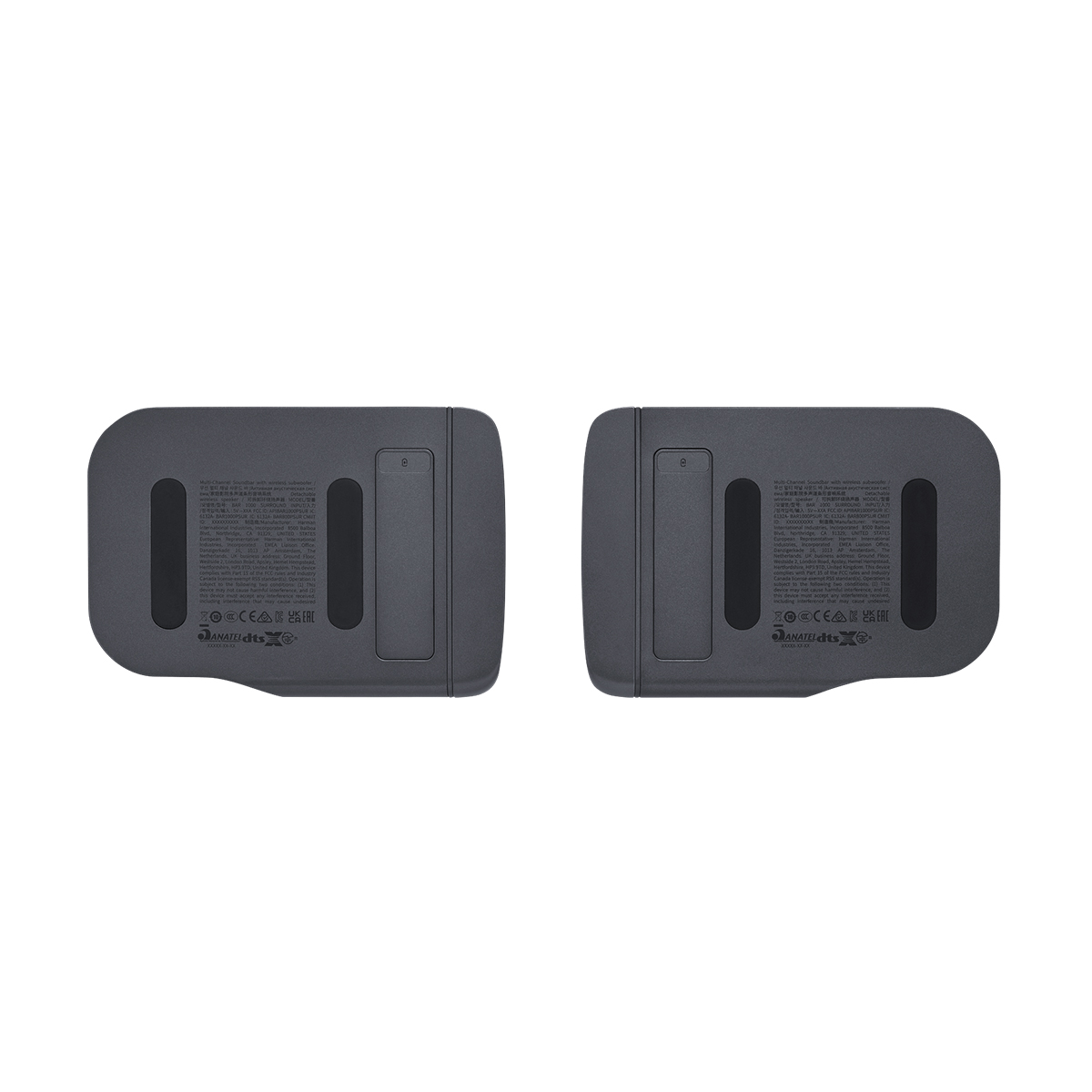

Detachable surround speaker dimensions (each) (W x H x D): 155 x 56 x 125 mm / 6.1” x 2.2” x 4.9”
-
Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12” x 17.3” x 12”
-
Soundbar weight: 3.7 kg / 8.2 lbs
-
Detachable surround speaker weight (each): 0.7kg / 1.55 lbs
-
Subwoofer weight: 10 kg / 22 lbs
-
Packaging dimensions (W x H x D): 1000 x 375 x 475 mm/ 39.4” x 14.8” x 18.7”
-
Packaging Weight: 19.4 kg / 42.7 lbs
